SRB3-1D-DC-1-RGL

Active

Switch Components

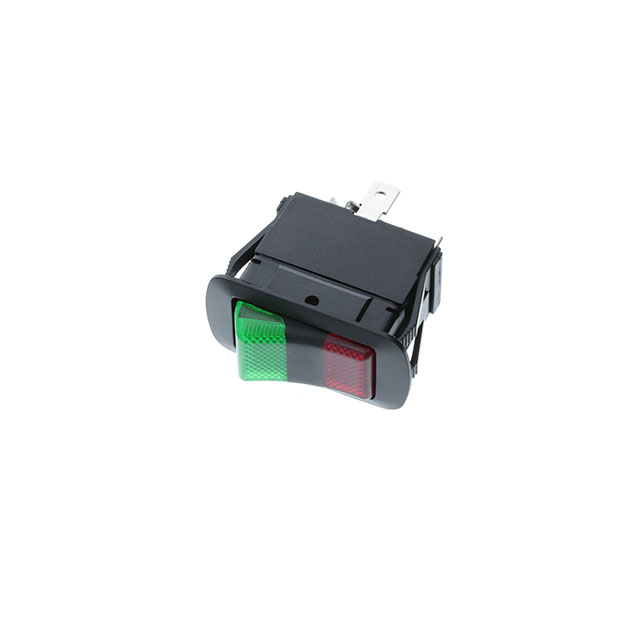

SWITCH ROCKER SPDT 21A 14V

Search across all available documentation for this part.

Active

Switch Components

SWITCH ROCKER SPDT 21A 14V

Technical Specifications

Parameters and characteristics for this part

Specification	SRB3-1D-DC-1-RGL

Actuator Marking	No Marking
Actuator Type	Concave (Curved) - Illuminated
Approval Agency	cURus, ENEC
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	21 A
Electrical Life	6000 Cycles
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	14 VDC
Ingress Protection	IP56 - Dust Protected, Water Resistant
Mechanical Life	10000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	36.6 mm
Panel Cutout Dimensions [y]	21.2 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	14 V

Part	Illumination Voltage (Nominal)	Mechanical Life	Mounting Type	Actuator Type	Electrical Life	Illumination Type, Color	Approval Agency	Circuit	Color - Actuator/Cap	Switch Function	Termination Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Actuator Marking	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Current Rating (Amps)
Switch Components SRB3-1D-DC-1-RGL	14 VDC	10000 Steps	Panel Mount Snap-In	Concave (Curved) - Illuminated	6000 Cycles	Green/Red LED	cURus ENEC	SPDT	Black	On-On	Quick Connect - 0.250" (6.3mm)	21.2 mm	36.6 mm	No Marking	14 V	85 °C	-20 C	IP56 - Dust Protected Water Resistant	21 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 21A (DC) Panel Mount, Snap-In
