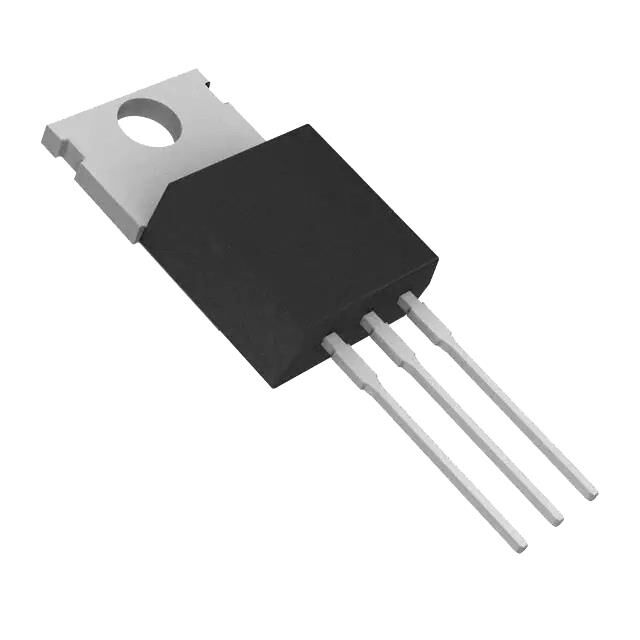

NXPS20H110C,127

Active

WeEn Semiconductors Co., Ltd

DIODE ARR SCHOT 110V 10A TO220AB

Search across all available documentation for this part.

Active

WeEn Semiconductors Co., Ltd

DIODE ARR SCHOT 110V 10A TO220AB

Technical Specifications

Parameters and characteristics for this part

Specification	NXPS20H110C,127

Current - Average Rectified (Io) (per Diode)	10 A
Current - Reverse Leakage @ Vr	6 µA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 °C
Package / Case	TO-220-3
Speed	200 mA, 500 ns
Supplier Device Package	TO-220AB
Technology	Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	110 V
Voltage - Forward (Vf) (Max) @ If [Max]	770 mV

Part	Technology	Current - Reverse Leakage @ Vr	Supplier Device Package	Current - Average Rectified (Io) (per Diode)	Speed	Mounting Type	Voltage - Forward (Vf) (Max) @ If [Max]	Diode Configuration	Package / Case	Operating Temperature - Junction [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If
WeEn Semiconductors Co., Ltd NXPS20H100CX,127	Schottky	4.5 mA	TO-220F	10 A	200 mA 500 ns	Through Hole	770 mV	1 Pair Common Cathode	TO-220-3 Full Pack Isolated Tab	175 °C	100 V
WeEn Semiconductors Co., Ltd NXPS20S100C,127	Schottky	3 µA	TO-220AB	10 A	200 mA 500 ns	Through Hole		1 Pair Common Cathode	TO-220-3	175 °C	100 V	580 mV
WeEn Semiconductors Co., Ltd NXPS20H110C,127	Schottky	6 µA	TO-220AB	10 A	200 mA 500 ns	Through Hole	770 mV	1 Pair Common Cathode	TO-220-3	175 °C	110 V
WeEn Semiconductors Co., Ltd NXPS20H100C,127	Schottky	4.5 µA	TO-220AB	10 A	200 mA 500 ns	Through Hole	770 mV	1 Pair Common Cathode	TO-220-3	175 °C	100 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	874	$ 0.34

General part information

Diode Array 1 Pair Common Cathode 110 V 10A Through Hole TO-220-3
