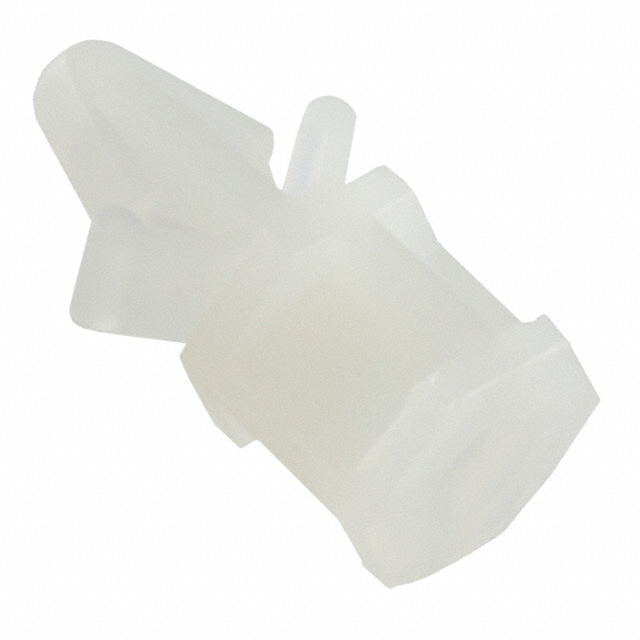

R6510-00
ActiveHarwin Inc.
9.60MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
R6510-00
ActiveHarwin Inc.
9.60MM SELF-LOCKING PLASTIC SPACER/PILLAR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | R6510-00 |
|---|---|
| Between Board Height [z] | 9.45 mm |
| Between Board Height [z] | 0.372 " |
| Holding Type | Snap Lock |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 3.6 mm |
| Mounting Hole Diameter [diameter] | 0.142 " |
| Mounting Type | Screw Mount |
| Support Hole Diameter [diameter] | 0.157 " |
| Support Hole Diameter [diameter] | 3.99 mm |
| Support Panel Thickness | 1.6 mm |
| Support Panel Thickness | 0.063 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
R6510 Series
Board Support Snap Lock / Screw Mount Nylon 0.372" (9.45mm)
