YB16KKW01

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

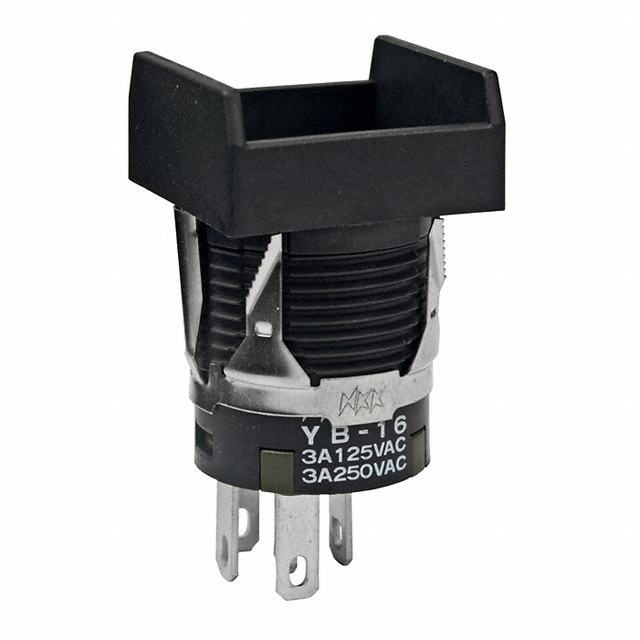

YB16KKW01

Active

NKK Switches

SWITCH PUSHBUTTON SPDT 3A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	YB16KKW01

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	SPDT
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Features	Tactile Feedback
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

YB16KK Series

Part	Current Rating (Amps)	Electrical Life	Features	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Actuator Marking	Color - Actuator/Cap	Voltage Rating - AC	Illumination Type, Color	Type	Switch Function	Mounting Type	Mechanical Life	Voltage Rating - DC	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]	Actuator Type	Termination Style	Termination Style
NKK Switches YB16KKW03-5D05-JB	3 A	100000 Cycles	Tactile Feedback	SPDT	50 °C	-25 °C	PC Pin	No Marking	Clear	125 V	Amber LED	Illuminated Standard	On-On	Panel Mount Snap-In	200000 Cycles	30 V	5 VDC	16 mm	Button Square
NKK Switches YB16KKW01-6F-JB	3 A	100000 Cycles	Tactile Feedback	SPDT	50 °C	-25 °C	Quick Connect Solder	No Marking	Clear	125 V	Green LED	Illuminated Standard	On-On	Panel Mount Snap-In	200000 Cycles	30 V	3.3 VDC	16 mm	Button Square	0.11 in	2.8 mm
NKK Switches YB16KKW01-1F05-JB	3 A	100000 Cycles	Tactile Feedback	SPDT	50 °C	-25 °C	Quick Connect Solder	No Marking	Clear	125 V	Green LED	Illuminated Standard	On-On	Panel Mount Snap-In	200000 Cycles	30 V	5 VDC	16 mm	Button Square	0.11 in	2.8 mm
NKK Switches YB16KKW01-1F12-JB	3 A	100000 Cycles	Tactile Feedback	SPDT	50 °C	-25 °C	Quick Connect Solder	No Marking	Clear	125 V	Green LED	Illuminated Standard	On-On	Panel Mount Snap-In	200000 Cycles	30 V	12 VDC	16 mm	Button Square	0.11 in	2.8 mm
NKK Switches YB16KKW01	3 A	100000 Cycles	Tactile Feedback	SPDT	70 °C	-25 °C	Quick Connect Solder	No Marking		125 V		Standard	On-On	Panel Mount Snap-In	200000 Cycles	30 V		16 mm	Plunger for Cap	0.11 in	2.8 mm
NKK Switches YB16KKW03	3 A	100000 Cycles	Tactile Feedback	SPDT	70 °C	-25 °C	PC Pin	No Marking		125 V		Standard	On-On	Panel Mount Snap-In	200000 Cycles	30 V		16 mm	Plunger for Cap
NKK Switches YB16KKW01/UC	3 A	100000 Cycles	Tactile Feedback	SPDT	70 °C	-25 °C	Quick Connect Solder	No Marking		125 V		Standard	On-On	Panel Mount Snap-In	200000 Cycles	30 V		16 mm	Plunger for Cap	0.11 in	2.8 mm
NKK Switches YB16KKW01-EB	3 A	100000 Cycles	Tactile Feedback	SPDT	70 °C	-25 °C	Quick Connect Solder	No Marking	Yellow (White Filter/Diffuser)	125 V		Standard	On-On	Panel Mount Snap-In	200000 Cycles	30 V		16 mm	Button Square	0.11 in	2.8 mm
NKK Switches YB16KKW01-GB	3 A	100000 Cycles	Tactile Feedback	SPDT	70 °C	-25 °C	Quick Connect Solder	No Marking	Blue	125 V		Standard	On-On	Panel Mount Snap-In	200000 Cycles	30 V		16 mm	Button Square	0.11 in	2.8 mm
NKK Switches YB16KKW01-6B-JB	3 A	100000 Cycles	Tactile Feedback	SPDT	50 °C	-25 °C	Quick Connect Solder	No Marking	Clear	125 V	LED White	Illuminated Standard	On-On	Panel Mount Snap-In	200000 Cycles	30 V	3.3 VDC	16 mm	Button Square	0.11 in	2.8 mm
