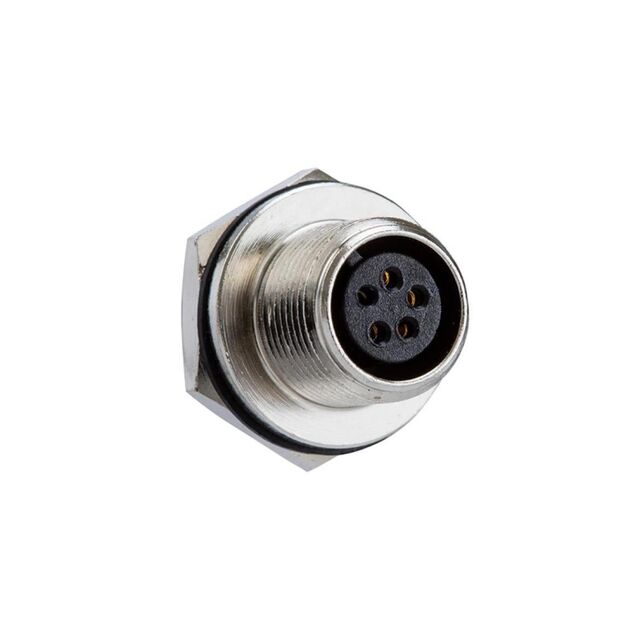

105-05PMFS-SH7001

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M10.5, METAL, 2A, 05 PINS, MALE CONNECTOR, FEMALE CONTACT, HEXAGONAL, SCREW THREAD, SOLDER, RECEPTACL

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M10.5, METAL, 2A, 05 PINS, MALE CONNECTOR, FEMALE CONTACT, HEXAGONAL, SCREW THREAD, SOLDER, RECEPTACL

Technical Specifications

Parameters and characteristics for this part

Specification	105-05PMFS-SH7001

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shell Size - Insert	M10-5
Shielding	Shielded
Voltage Rating	30 VDC

Part	Connector Type	Shielding	Current Rating (Amps)	Color	Shell Material	Shell Finish	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Orientation	Primary Material	Mounting Feature	Contact Material	Insert Material	Shell Size - Insert	Ingress Protection
Amphenol LTW 105-05PMFS-SH7001	Receptacle Female Sockets	Shielded	2 A	Silver	Copper Alloy	Nickel	30 VDC	-40 °C	105 ░C	Gold	Keyed	Metal	Bulkhead - Rear Side Nut	Copper Alloy	Polyamide (PA) Nylon Glass Filled	M10-5	IP67 - Dust Tight Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Female Sockets Solder Cup
