345-092-520-203

Active

EDAC Inc.

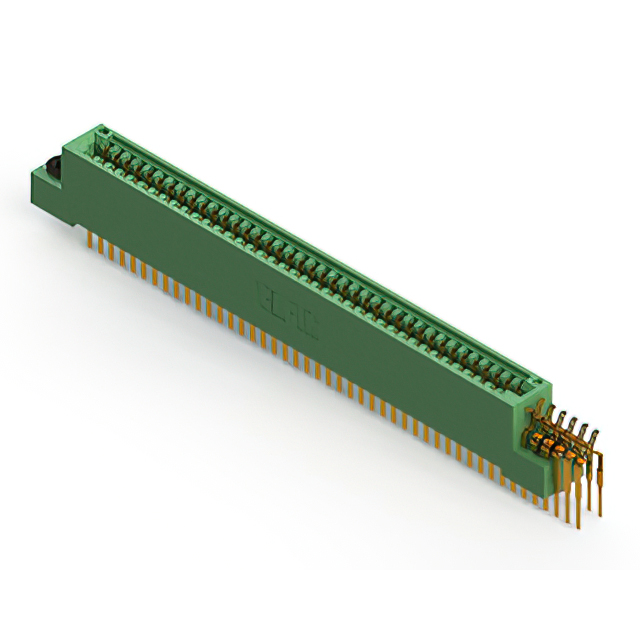

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 92 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Drawing EN

345-092-520-203

Active

EDAC Inc.

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 92 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Drawing EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	345-092-520-203

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	92
Number of Positions/Bay/Row [custom]	46
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Solder
Termination Rows	2

345-092 Series

...

Part	Termination Rows	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Number of Positions	Color	Card Type	Contact Finish	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Read Out	Number of Positions/Bay/Row [custom]	Mounting Type	Gender	Contact Material	Number of Rows	Flange Feature	Pitch [x]	Pitch [x]	Material - Insulation	Features	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 345-092-525-207	2	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	92	Green	Non Specified - Dual Edge	Gold	Solder	-40 °C	105 ░C	Dual	46	Through Hole	Female	Copper Alloy	2	Flush Mount M3 Threaded Insert Top Opening	2.54 mm	0.1 in	Polyester Thermoplastic
EDAC Inc. 345-092-541-208	2	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	92	Green	Non Specified - Dual Edge	Gold	Wire Wrap	-40 °C	105 ░C	Dual	46	Through Hole	Female	Copper Alloy	2	4-40 Flush Mount Threaded Insert Top Opening	2.54 mm	0.1 in	Polyester Thermoplastic
EDAC Inc. 345-092-559-807	2	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	92	Green	Non Specified - Dual Edge	Gold	Wire Wrap	-40 °C	105 ░C	Dual	46	Through Hole Right Angle	Female	Copper Alloy	2	M3 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	Polyester Thermoplastic
EDAC Inc. 345-092-558-558	2	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	92	Green	Non Specified - Dual Edge	Gold	Solder	-40 °C	105 ░C	Dual	46	Through Hole Right Angle	Female	Copper Alloy	2	4-40 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	Polyester Thermoplastic	Card Guides
EDAC Inc. 345-092-541-803	2	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	92	Green	Non Specified - Dual Edge	Gold	Wire Wrap	-40 °C	105 ░C	Dual	46	Through Hole	Female	Copper Alloy	2	Floating Bobbin Top Mount Opening	2.54 mm	0.1 in	Polyester Thermoplastic		2.95 mm	0.116 in
EDAC Inc. 345-092-544-878	2	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	92	Green	Non Specified - Dual Edge	Gold	Wire Wrap	-40 °C	105 ░C	Dual	46	Through Hole	Female	Copper Alloy	2	4-40 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	Polyester Thermoplastic	Card Guides
EDAC Inc. 345-092-525-278	2	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	92	Green	Non Specified - Dual Edge	Gold	Solder	-40 °C	105 ░C	Dual	46	Through Hole	Female	Copper Alloy	2	4-40 Flush Mount Threaded Insert Top Opening	2.54 mm	0.1 in	Polyester Thermoplastic	Card Guides
EDAC Inc. 345-092-520-578	2	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	92	Green	Non Specified - Dual Edge	Gold	Solder	-40 °C	105 ░C	Dual	46	Through Hole	Female	Copper Alloy	2	4-40 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	Polyester Thermoplastic	Card Guides
EDAC Inc. 345-092-559-504	2	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	92	Green	Non Specified - Dual Edge	Gold	Wire Wrap	-40 °C	105 ░C	Dual	46	Through Hole Right Angle	Female	Copper Alloy	2	Top Mount Opening Unthreaded	2.54 mm	0.1 in	Polyester Thermoplastic		3.96 mm	0.156 in
EDAC Inc. 345-092-520-203	2	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Cantilever	92	Green	Non Specified - Dual Edge	Gold	Solder	-40 °C	105 ░C	Dual	46	Through Hole	Female	Copper Alloy	2	Floating Bobbin Flush Mount	2.54 mm	0.1 in	Polyester Thermoplastic		2.95 mm	0.116 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 15.81
LCSC	Piece	1	$ 8.37
		200	$ 3.24
		500	$ 3.13
		1000	$ 3.07
Newark	Each	1	$ 15.88
		100	$ 11.85
		250	$ 9.92
		500	$ 8.27
		1000	$ 6.29

Description

General part information

345-092 Series

92 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Green
