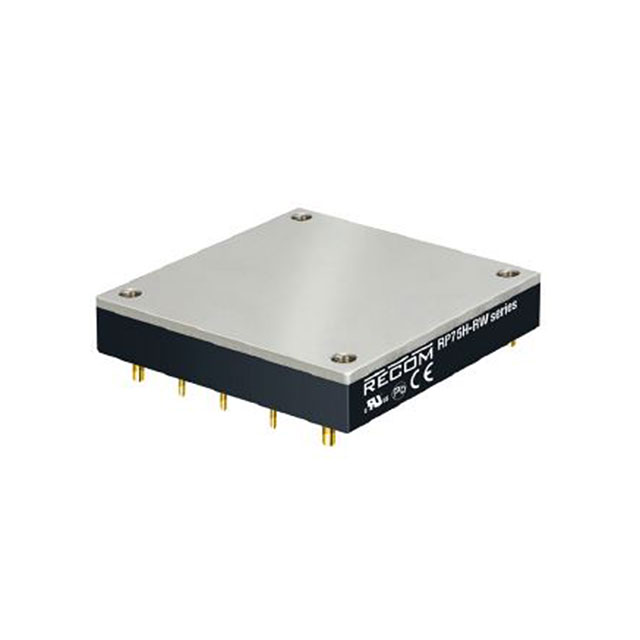

RP75H-2415SRW/P

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 75W 9-36VIN 15VOUT 5A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RP75H-2415SRW/P

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 75W 9-36VIN 15VOUT 5A

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RP75H-2415SRW/P

Applications	Railway, ITE (Commercial)
Current - Output (Max) [Max]	5 A
Efficiency	88 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	Half Brick
Power (Watts)	75 W
Size / Dimension [x]	2.4 in
Size / Dimension [x]	61 mm
Size / Dimension [y]	57.9 mm
Size / Dimension [y]	2.28 in
Size / Dimension [z]	12.1 mm
Size / Dimension [z]	0.48 in
Supplier Device Package	Half Brick
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	15 V

RP75H-11015 Series

Isolated DC/DC Converters - Through Hole 75W 9-36Vin 24Vout 3.2A

Part	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Supplier Device Package	Mounting Type	Power (Watts)	Type	Voltage - Output 1	Efficiency	Voltage - Isolation	Package / Case	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Current - Output (Max) [Max]	Features	Number of Outputs
RECOM Power RP75H-2415SRW/P	36 V	-40 °C	105 C	9 V	Half Brick	Through Hole	75 W	Isolated Module	15 V	88 %	2250 VDC	Half Brick	ITE (Commercial) Railway	2.4 in	57.9 mm	61 mm	2.28 in	12.1 mm	0.48 in	5 A	OCP OTP OVP Remote On/Off SCP UVLO	1
RECOM Power RP75H-11015SRW/P	160 V	-40 °C	105 C	43 V	Half Brick	Through Hole	75 W	Isolated Module	15 V	91 %	3000 V	Half Brick	ITE (Commercial) Railway	2.4 in	57.9 mm	61 mm	2.28 in	12.7 mm	0.5 in	5 A	OCP OTP OVP Remote On/Off SCP UVLO	1
RECOM Power RP75H-11005SRW/N	160 V	-40 °C	105 C	43 V	Half Brick	Through Hole	75 W	Isolated Module	5 V	91 %	3000 V	Half Brick	ITE (Commercial) Railway	2.4 in	57.9 mm	61 mm	2.28 in	12.7 mm	0.5 in	15 A	OCP OTP OVP Remote On/Off SCP UVLO	1
RECOM Power RP75H-4805SRW/P-HC	75 V	-40 °C	105 C	18 V	Half Brick	Through Hole	75 W	Isolated Module	5 V	90 %	2250 VDC	Half Brick	ITE (Commercial) Railway	2.4 in	57.9 mm	61 mm	2.28 in	24.1 mm	24.13 mm	15 A	OCP OTP OVP Remote On/Off SCP UVLO	1
RECOM Power RP75H-11015SRW/N	160 V	-40 °C	105 C	43 V	Half Brick	Through Hole	75 W	Isolated Module	15 V	91 %	3000 V	Half Brick	ITE (Commercial) Railway	2.4 in	57.9 mm	61 mm	2.28 in	12.7 mm	0.5 in	5 A	OCP OTP OVP Remote On/Off SCP UVLO	1
RECOM Power RP75H-2415SRW/P-HC	36 V	-40 °C	105 C	9 V	Half Brick	Through Hole	75 W	Isolated Module	15 V	88 %	2250 VDC	Half Brick	ITE (Commercial) Railway	2.4 in	57.9 mm	61 mm	2.28 in	24.1 mm	24.13 mm	5 A	OCP OTP OVP Remote On/Off SCP UVLO	1
RECOM Power RP75H-4812SRW/N	75 V	-40 °C	105 C	18 V	Half Brick	Through Hole	75 W	Isolated Module	12 V	90 %	2250 VDC	Half Brick	ITE (Commercial) Railway	2.4 in	57.9 mm	61 mm	2.28 in	12.1 mm	0.48 in	6.3 A	OCP OTP OVP Remote On/Off SCP UVLO	1
RECOM Power RP75H-11012SRW/P-HC	160 V	-40 °C	105 C	43 V	Half Brick	Through Hole	75 W	Isolated Module	12 V	91 %	3000 V	Half Brick	ITE (Commercial) Railway	2.4 in	57.9 mm	61 mm	2.28 in	24.1 mm	24.13 mm	6.3 A	OCP OTP OVP Remote On/Off SCP UVLO	1
RECOM Power RP75H-11048SRW/P-HC	160 V	-40 °C	105 C	43 V	Half Brick	Through Hole	77 W	Isolated Module	48 V	90 %	3000 V	Half Brick	ITE (Commercial) Railway	2.4 in	57.9 mm	61 mm	2.28 in	24.1 mm	24.13 mm	1.6 A	OCP OTP OVP Remote On/Off SCP UVLO	1
RECOM Power RP75H-11012SRW/P	160 V	-40 °C	105 C	43 V	Half Brick	Through Hole	75 W	Isolated Module	12 V	91 %	3000 V	Half Brick	ITE (Commercial) Railway	2.4 in	57.9 mm	61 mm	2.28 in	12.7 mm	0.5 in	6.3 A	OCP OTP OVP Remote On/Off SCP UVLO	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2	$ 178.91
Sager	N/A	1	$ 178.91
		5	$ 167.73
		10	$ 160.22
		25	$ 153.36
		50	$ 147.05
		100	$ 137.62
		250	$ 130.92
