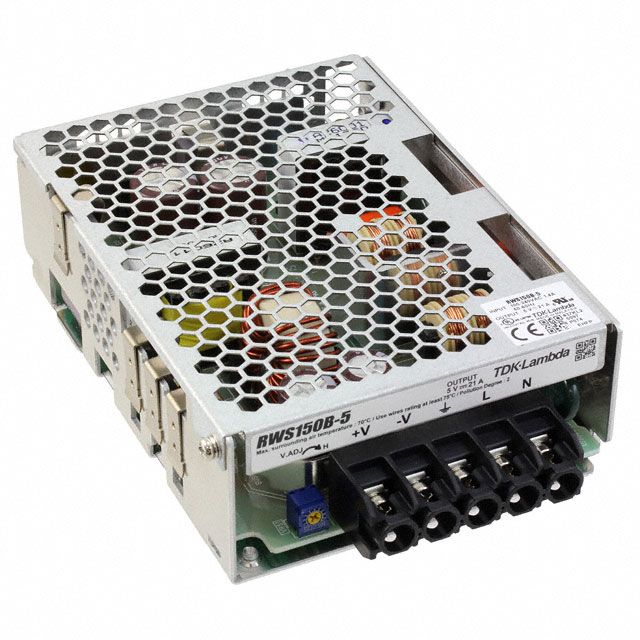

RWS150B-5/CO2

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 105 W, 5 V, 21 A

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC ENCLOSED POWER SUPPLY (PSU), 1 OUTPUTS, 105 W, 5 V, 21 A

Technical Specifications

Parameters and characteristics for this part

Specification	RWS150B-5/CO2

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	21 A
Efficiency	79 %
Features	Universal Input, Adjustable Output, DC Input Capable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	150 W
Size / Dimension [x]	5.04 "
Size / Dimension [x]	128 mm
Size / Dimension [y]	3.7 in
Size / Dimension [y]	94 mm
Size / Dimension [z]	1.61 "
Size / Dimension [z]	41 mm
Type	Conformal Coated, Enclosed
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	5 V

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Current - Output 1	Features	Approval Agency	Type	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Efficiency	Number of Outputs	Voltage - Isolation	Mounting Type	Power (Watts)	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]
TDK-LAMBDA RWS150B-5/CO2	5.04 "	128 mm	1.61 "	3.7 in	41 mm	94 mm	21 A	Adjustable Output DC Input Capable Universal Input	CE	Conformal Coated Enclosed	ITE (Commercial)	85 VAC	265 VAC	79 %	1	3000 V	Chassis Mount	150 W	5 V	-20 °C	70 °C
TDK-LAMBDA RWS150B-15	5.04 "	128 mm	1.61 "	3.7 in	41 mm	94 mm	10 A	DC Input Capable PFC Universal Input	CSA cUL FCC UL	Enclosed	ITE (Commercial)	85 VAC	265 VAC	87.5 %	1	3000 V	Chassis Mount	150 W	15 V	-20 °C	70 °C
TDK-LAMBDA RWS150B-28	5.04 "	128 mm	1.61 "	3.7 in	41 mm	94 mm		DC Input Capable PFC Universal Input	CSA cUL FCC UL	Enclosed	ITE (Commercial)	85 VAC	265 VAC		1	3000 V	Chassis Mount	151 W	28 V	-20 °C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed, Conformal Coated AC DC Converters 1 Output 5V 85 ~ 265 VAC Input
