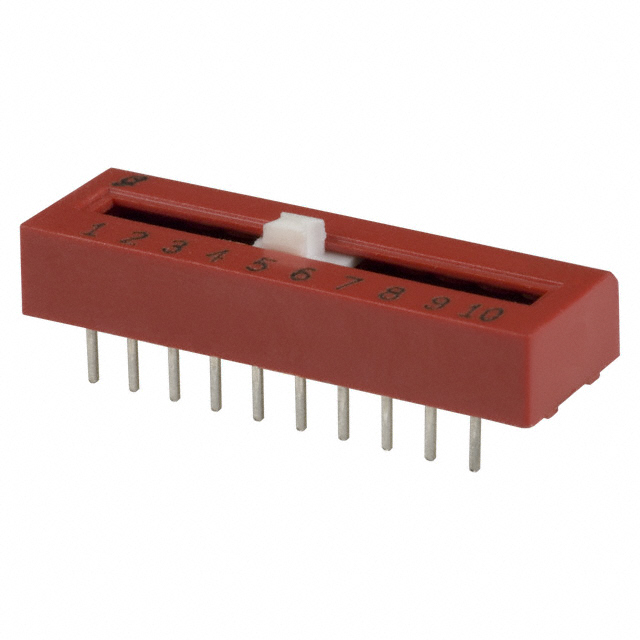

79A10T
ActiveGrayhill Inc.
SWITCH DIP N.O./N.C. SP10T 10 RAISED SLIDE 0.125A 30VDC PC PINS 4000CYCLES 2.54MM THRU-HOLE TUBE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
79A10T
ActiveGrayhill Inc.
SWITCH DIP N.O./N.C. SP10T 10 RAISED SLIDE 0.125A 30VDC PC PINS 4000CYCLES 2.54MM THRU-HOLE TUBE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 79A10T |
|---|---|
| Actuator Level | Raised |
| Actuator Type | Slide (Standard) |
| Body Material | Plastic |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 125 mA |
| Electrical Life | 2000 Steps |
| Height Above Board | 0.25 in |
| Height Above Board | 6.35 mm |
| Length | 29.97 mm |
| Length | 1.18 in |
| Mechanical Life | 4000 Cycles |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | PC Pin |
| Voltage Rating | 6 VDC |
| Washable | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 14.04 | |
| 18 | $ 13.40 | |||
| 27 | $ 12.19 | |||
| 108 | $ 10.53 | |||
| 252 | $ 9.57 | |||
| 504 | $ 8.87 | |||
| 1008 | $ 8.23 | |||
Description
General part information
79A10 Series
Dip Switch 10PST 10 Position Through Hole Slide (Standard) Actuator 125mA 6VDC
