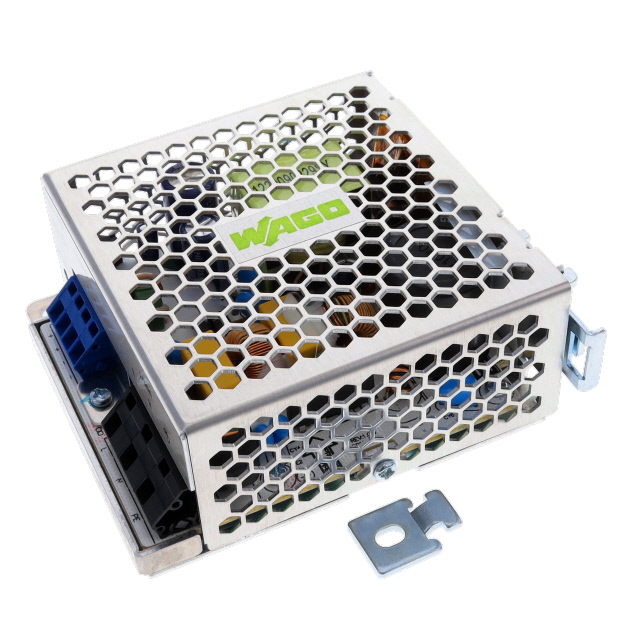

787-1712

Active

WAGO Corporation

AC/DC DIN RAIL SUPPLY 24V 60W

Search across all available documentation for this part.

Active

WAGO Corporation

AC/DC DIN RAIL SUPPLY 24V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	787-1712

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	90 VAC
Applications	ITE (Commercial), Industrial, Household Appliances
Approval Agency	UL, cURus
Current - Output (Max) [Max]	2.5 A
DC Voltage - Input (Max) [Max]	375 V
DC Voltage - Input (Min) [Min]	125 V
Efficiency	88 %
Features	Universal Input, IP20, Adjustable Output, PFC
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Voltage - Isolation	4.242 kV
Voltage - Output 1	24 V

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Number of Outputs	Efficiency	Voltage - Output 1	DC Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation	Current - Output (Max) [Max]	Input Type	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Features	Approval Agency	DC Voltage - Input (Min) [Min]	Applications	Standard Number
WAGO Corporation 787-1722	3.9 "	2.36 "	60 mm	5.12 "	130 mm	99 mm	1	88 %	24 V	375 V	60 °C	-20 °C	4.242 kV	5 A	AC or DC	90 VAC	264 VAC	Adjustable Output IP20 PFC Universal Input	cURus UL	125 V	Industrial ITE (Commercial)	60950-1 UL 508
WAGO Corporation 787-1712							1	88 %	24 V	375 V	60 °C	-20 °C	4.242 kV	2.5 A	AC or DC	90 VAC	264 VAC	Adjustable Output IP20 PFC Universal Input	cURus UL	125 V	Household Appliances Industrial ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 24V 60W
