1P2G125QYEPR
ObsoleteTexas Instruments
IC BUF NON-INVERT 5.5V 8DSBGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1P2G125QYEPR
ObsoleteTexas Instruments
IC BUF NON-INVERT 5.5V 8DSBGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1P2G125QYEPR |
|---|---|
| Current - Output High, Low [x] | 32 mA |
| Current - Output High, Low [y] | 32 mA |
| Logic Type | Buffer, Non-Inverting |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 1 |
| Number of Elements | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | 3-State |

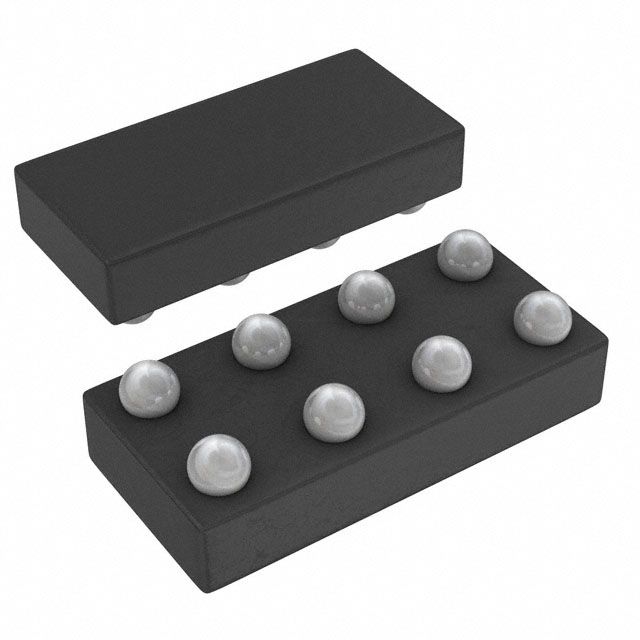

| Package / Case | 8-XFBGA, DSBGA |
| Supplier Device Package | 8-DSBGA (1.9x0.9) |
| Supplier Device Package [x] | 1.9 |
| Supplier Device Package [y] | 0.9 |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.65 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1P2G12 Series
Buffer, Non-Inverting 2 Element 1 Bit per Element 3-State Output 8-DSBGA (1.9x0.9)
