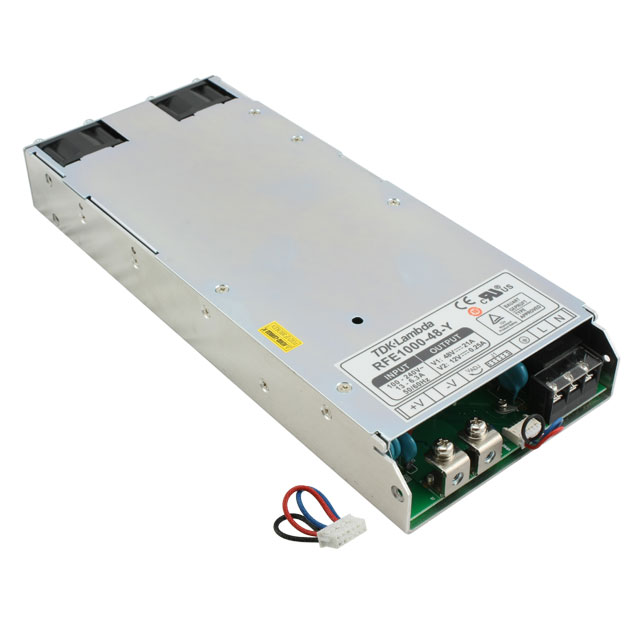

RFE1000-48-Y

Active

TDK-LAMBDA

AC/DC FRONT END POWER SUPPLY (PSU), 1 OUTPUT, ADJUSTABLE, FIXED, 1.008 KW, 48 V, 21 A, RFE SERIES

Search across all available documentation for this part.

Active

TDK-LAMBDA

AC/DC FRONT END POWER SUPPLY (PSU), 1 OUTPUT, ADJUSTABLE, FIXED, 1.008 KW, 48 V, 21 A, RFE SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	RFE1000-48-Y

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	21 A
Efficiency	88 %
Features	Load Sharing, Remote On/Off, Remote Sense, Adjustable Output, Standby Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	1.008 kW
Size / Dimension [x]	305 mm
Size / Dimension [x]	12 in
Size / Dimension [y]	5 in
Size / Dimension [y]	127 mm
Size / Dimension [z]	1.6 "
Size / Dimension [z]	41 mm
Type	Enclosed
Voltage - Input [Max]	265 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	48 V

Part	Features	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Number of Outputs	Current - Output 1	Voltage - Isolation	Approval Agency	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Mounting Type	Type	Voltage - Output 1	Applications
TDK-LAMBDA RFE1000-48-Y	Adjustable Output Load Sharing Remote On/Off Remote Sense Standby Output Universal Input	5 in	305 mm	12 in	1.6 "	127 mm	41 mm	88 %	1	21 A	3000 V	CE	85 VAC	265 VAC	70 °C	0 °C	1.008 kW	Chassis Mount	Enclosed	48 V	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 48V 85 ~ 265 VAC Input
