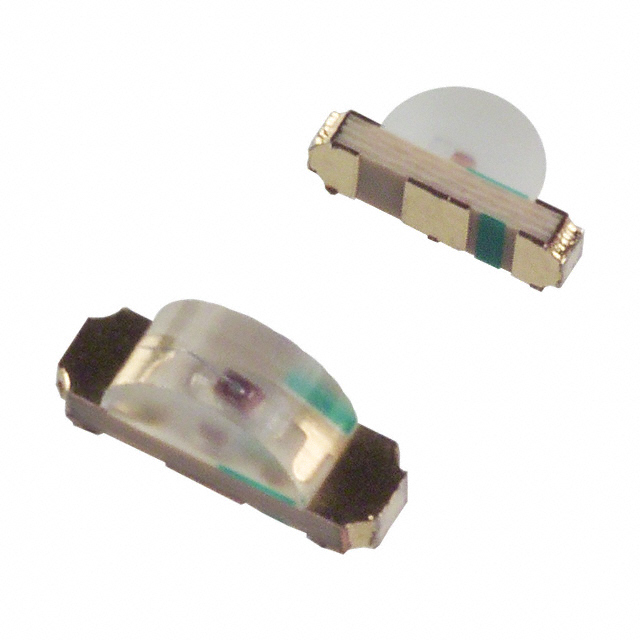

SML-LXR85GC-TR
ActiveLumex Opto/Components Inc.
LED GREEN CLEAR SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
SML-LXR85GC-TR
ActiveLumex Opto/Components Inc.
LED GREEN CLEAR SMD R/A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SML-LXR85GC-TR |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 1 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2 mm |
| Lens Size [y] | 1 mm |
| Lens Style | Rectangle with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 12 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1.5 mm |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Peak | 565 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.42 | |
| 10 | $ 0.24 | |||
| 100 | $ 0.15 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.11 | |||
| Digi-Reel® | 1 | $ 0.42 | ||
| 10 | $ 0.24 | |||
| 100 | $ 0.15 | |||
| 500 | $ 0.12 | |||
| 1000 | $ 0.11 | |||
| Tape & Reel (TR) | 3000 | $ 0.09 | ||
| 6000 | $ 0.09 | |||
| 9000 | $ 0.08 | |||
| 15000 | $ 0.08 | |||
| 21000 | $ 0.08 | |||
| 30000 | $ 0.08 | |||
| 75000 | $ 0.07 | |||
Description
General part information
SML-LXR85 Series
Green LED Indication - Discrete 2.2V 2-SMD, No Lead
Documents
Technical documentation and resources
No documents available
