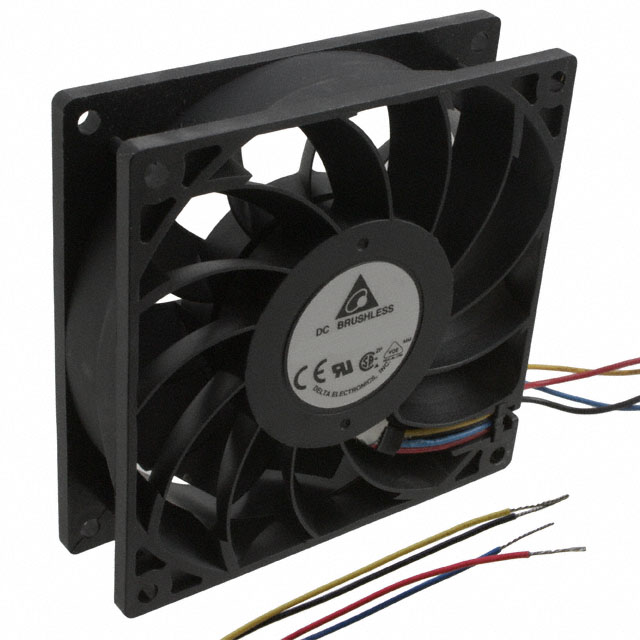

PFM1412DEB7V

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 12V 10.8V TO 12.8V 282.31CFM 70DB 140 X 140 X 38MM

Search across all available documentation for this part.

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 12V 10.8V TO 12.8V 282.31CFM 70DB 140 X 140 X 38MM

Technical Specifications

Parameters and characteristics for this part

Specification	PFM1412DEB7V

Air Flow	282.3 CFM
Air Flow	7.9 m³/min
Approval Agency	cURus, CE, TUV
Bearing Type	Ball
Current Rating (Amps)	3.9 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	70 dB(A)
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	46.8 W
RPM	6500 RPM
Static Pressure	2.033 in H2O
Static Pressure	506.4 Pa
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	12.6 VDC
Voltage Range [Min]	10.8 VDC
Weight	589.7 g
Weight	1.3 lbs
Width [y]	38 mm

Part	Width [y]	Fan Type	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Noise	Static Pressure	Static Pressure	Termination	Features	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Current Rating (Amps)	Lifetime @ Temp.	Weight	Weight	RPM	Material - Frame	Power (Watts)	Voltage - Rated	Approval Agency	Bearing Type	Air Flow	Air Flow
Delta Electronics PFM1412DEB7V	38 mm	Tubeaxial	Plastic	10.8 VDC	12.6 VDC	70 dB(A)	2.033 in H2O	506.4 Pa	4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)	-10 °C	-10 °C	60 °C	60 °C	3.9 A	70000 Hrs	589.7 g	1.3 lbs	6500 RPM	Plastic	46.8 W	12 VDC	CE cURus TUV	Ball	282.3 CFM	7.9 m³/min

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	240	$ 46.29

General part information

Fan Tubeaxial 12VDC Square - 139.7mm L x 139.7mm H Ball 282.3 CFM (7.90m³/min) 4 Wire Leads
