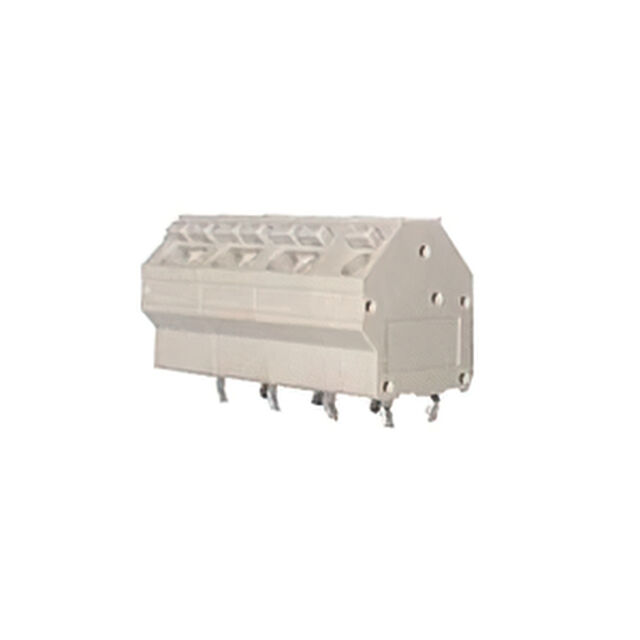

0397000504

Active

Molex

TERM BLOCK 4POS 45DEG 7.5MM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0397000504

Active

Molex

TERM BLOCK 4POS 45DEG 7.5MM PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0397000504

Clamp Material - Plating	Stainless, Steel
Color	Gray
Contact Material - Plating [custom]	Brass - Tin Plated
Current	10 A
Mating Orientation	135 °
Mating Orientation	45 °
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.295 in
Pitch [x]	7.5 mm
Positions Per Level	4
Voltage	300 V
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	14 AWG
Wire Termination	Screwless - Push Button Clamp

039700 Series

...

Part	Wire Gauge [Max]	Wire Gauge [Min]	Number of Levels	Clamp Material - Plating	Mating Orientation	Mating Orientation	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Plating [custom]	Current	Positions Per Level	Wire Termination	Color	Mounting Type	Pitch [x]	Pitch [x]	Contact Material - Plating [custom]	Contact Material - Plating [custom]	Mating Orientation	Features	Contact Material - Plating
Molex 0397000304	26 AWG	14 AWG	1	Stainless Steel	135 °	45 °	300 V	-40 °C	105 ░C	Brass - Tin Plated	10 A	4	Screwless - Push Button Clamp	Gray	Through Hole	0.394 in	10 mm
Molex 0397000504	26 AWG	14 AWG	1	Stainless Steel	135 °	45 °	300 V	-40 °C	105 ░C	Brass - Tin Plated	10 A	4	Screwless - Push Button Clamp	Gray	Through Hole	0.295 in	7.5 mm
Molex 0397000403	26 AWG	14 AWG	1	Stainless Steel	135 °	45 °	300 V	-40 °C	105 ░C	Brass - Tin Plated	10 A	3	Screwless - Push Button Clamp	Gray	Through Hole	0.197 in	5 mm
Molex 0397007506	20 AWG	16 AWG	1		135 °	45 °	300 V	-40 °C	105 ░C		5 A	6	Screwless - Push Button Clamp	Gray	Through Hole	0.138 in	3.5 mm	Tin Plated	Phosphor Bronze
Molex 0397000910	22 AWG	14 AWG	1	Stainless Steel			300 V	-40 °C	105 ░C	Brass - Tin Plated	10 A	10	Screwless - Push Button Clamp	Green	Through Hole	0.197 in	5 mm			Vertical with Board
Molex 0397000111	26 AWG	12 AWG	1	Stainless Steel	135 °	45 °	300 V	-40 °C	105 ░C	Brass - Tin Plated	18 A	11	Screwless - Push Button Clamp	Green	Through Hole	0.2 in	5.08 mm				Interlocking (Side)
Molex 0397000912	22 AWG	14 AWG	1	Stainless Steel			300 V	-40 °C	105 ░C	Brass - Tin Plated	10 A	12	Screwless - Push Button Clamp	Green	Through Hole	0.197 in	5 mm			Vertical with Board
Molex 0397000704	20 AWG	16 AWG	1		135 °	45 °	300 V	-40 °C	105 ░C		5 A	4	Screwless - Push Button Clamp	Gray	Through Hole	0.138 in	3.5 mm	Tin Plated	Phosphor Bronze
Molex 0397000505	26 AWG	14 AWG	1	Stainless Steel	135 °	45 °	300 V	-40 °C	105 ░C	Brass - Tin Plated	10 A	5	Screwless - Push Button Clamp	Gray	Through Hole	0.295 in	7.5 mm
Molex 0397004304	26 AWG	12 AWG	1	Stainless Steel			300 V	-40 °C	115 °C		20 A	4	Push-In Spring Screwless - Leg Spring	Green	Through Hole	0.197 in	5 mm			Horizontal with Board		Copper Alloy - Tin Plated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1152	$ 1.46

Description

General part information

039700 Series

4 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.295" (7.50mm) Through Hole
