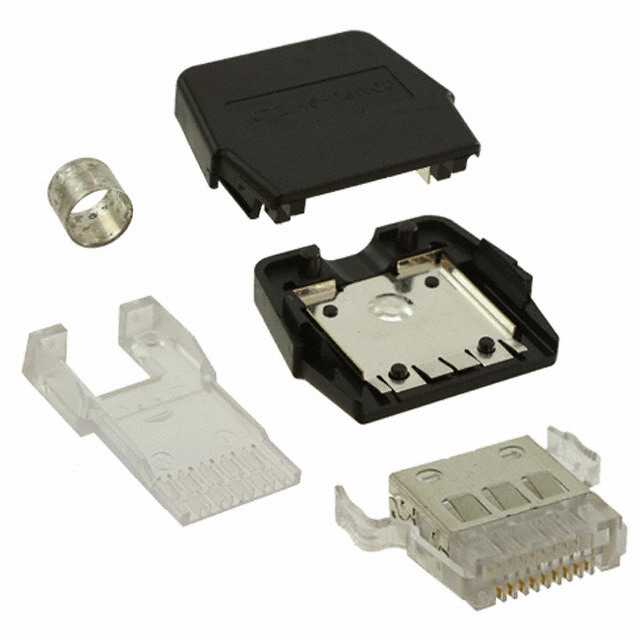

SS-311010-26

Obsolete

BEL MAGNETIC SOLUTIONS

CONN MOD PLUG 10P10C SHIELDED

Search across all available documentation for this part.

Obsolete

BEL MAGNETIC SOLUTIONS

CONN MOD PLUG 10P10C SHIELDED

Technical Specifications

Parameters and characteristics for this part

Specification	SS-311010-26

Cable Type	Round Cable, Solid, Stranded Wires
Color	Translucent - Clear
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Features	Compu-Shield, Keyed
Housing Material	Polycarbonate (PC)
Number of Positions/Contacts [custom]	10
Number of Positions/Contacts [custom]	10
Shielding	Shielded
Termination	IDC
Voltage Rating	150 VDC

Part	Connector Type	Housing Material	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Current Rating (Amps)	Contact Material	Shielding	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Termination	Color	Features	Voltage Rating	Cable Type
BEL MAGNETIC SOLUTIONS SS-311010-26	Plug	Polycarbonate (PC)	50 µin	1.27 µm	Gold	1.5 A	Copper Alloy	Shielded	10	10	IDC	Translucent - Clear	Compu-Shield Keyed	150 VDC	Round Cable Solid Stranded Wires

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 10p10c (RJ50) Position Shielded IDC
