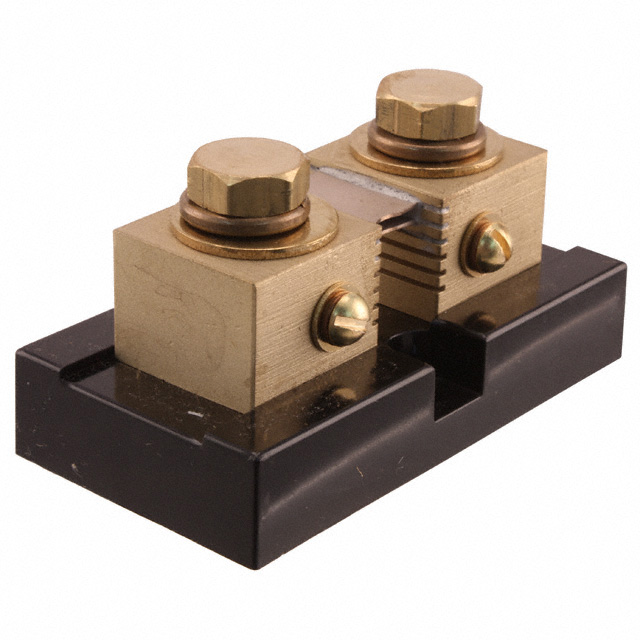

3020-01106-0

Obsolete

Murata Power Solutions Inc.

RES CHAS MNT 41.7 UOHM .25%

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Power Magnetics Selection Guide

3020-01106-0

Obsolete

Murata Power Solutions Inc.

RES CHAS MNT 41.7 UOHM .25%

Deep-Dive with AI

DocumentsDatasheet Power Magnetics Selection Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3020-01106-0

Composition	Metal Element
Features	Current Sense
Height - Seated (Max) [Max]	2.16 in
Height - Seated (Max) [Max]	54.9 mm
Mounting Feature	Flanges
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-40 °C
Package / Case	Rectangular Case
Resistance	41.7 µOhms
Size / Dimension [x]	114.3 mm
Size / Dimension [x]	4.5 in
Size / Dimension [y]	2.5 in
Size / Dimension [y]	63.5 mm
Temperature Coefficient	15 ppm/°C
Tolerance	0.25 %

3020 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Features	Power (Watts)	Package / Case	Resistance	Composition	Tolerance	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Power (Watts)
Murata Power Solutions Inc. 3020-01099-0	-40 °C	60 °C	Flanges	Current Sense	5 W	Rectangular Case	0.5 mOhms	Metal Element	0.25 %	15 ppm/°C	31.7 mm	1.248 in	2 in	50.8 mm	42.7 mm	1.68 in
Murata Power Solutions Inc. 3020-01097-0	-40 °C	60 °C	Flanges	Current Sense	250 mW	Rectangular Case	10 mOhms	Metal Element	0.25 %	15 ppm/°C	31.7 mm	1.248 in	2 in	50.8 mm	42.7 mm	1.68 in	0.25 W
Murata Power Solutions Inc. 3020-01096-0	-40 °C	60 °C	Flanges	Current Sense	2.5 W	Rectangular Case	1 mOhms	Metal Element	0.25 %	15 ppm/°C	31.7 mm	1.248 in	2 in	50.8 mm	42.7 mm	1.68 in
Murata Power Solutions Inc. 3020-01102-0	-40 °C	60 °C	Flanges	Current Sense	15 W	Rectangular Case	167 µOhms	Metal Element	0.25 %	15 ppm/°C	44.45 mm	1.75 in	3.25 in	82.55 mm	44.45 mm	1.75 in
Murata Power Solutions Inc. 3020-01103-0	-40 °C	60 °C	Flanges	Current Sense	25 W	Rectangular Case	100 µOhms	Metal Element	0.25 %	15 ppm/°C	44.45 mm	1.75 in	3.25 in	82.55 mm	44.45 mm	1.75 in
Murata Power Solutions Inc. 3020-01101-0	-40 °C	60 °C	Flanges	Current Sense	10 W	Rectangular Case	250 µOhms	Metal Element	0.25 %	15 ppm/°C	44.45 mm	1.75 in	3.25 in	82.55 mm	44.45 mm	1.75 in
Murata Power Solutions Inc. 3020-01104-0	-40 °C	60 °C	Flanges	Current Sense	40 W	Rectangular Case	62.5 µOhms	Metal Element	0.25 %	15 ppm/°C	63.5 mm	2.5 in	4.5 in	114.3 mm	54.9 mm	2.16 in
Murata Power Solutions Inc. 3020-01106-0	-40 °C	60 °C	Flanges	Current Sense		Rectangular Case	41.7 µOhms	Metal Element	0.25 %	15 ppm/°C	63.5 mm	2.5 in	4.5 in	114.3 mm	54.9 mm	2.16 in
Murata Power Solutions Inc. 3020-01107-0	-40 °C	60 °C	Flanges	Current Sense	1 W	Rectangular Case	10 mOhms	Metal Element	0.25 %	15 ppm/°C	31.7 mm	1.25 in	2 in	50.8 mm	42.7 mm	1.68 in
Murata Power Solutions Inc. 3020-01100-0	-40 °C	60 °C	Flanges	Current Sense	7.5 W	Rectangular Case	330 µOhms	Metal Element	0.25 %	15 ppm/°C	31.7 mm	1.25 in	2 in	50.8 mm	42.7 mm	1.68 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

3020 Series

41.7 µOhms ±0.25% 60W Metal Element Chassis Mount Resistor
