HDO4104A

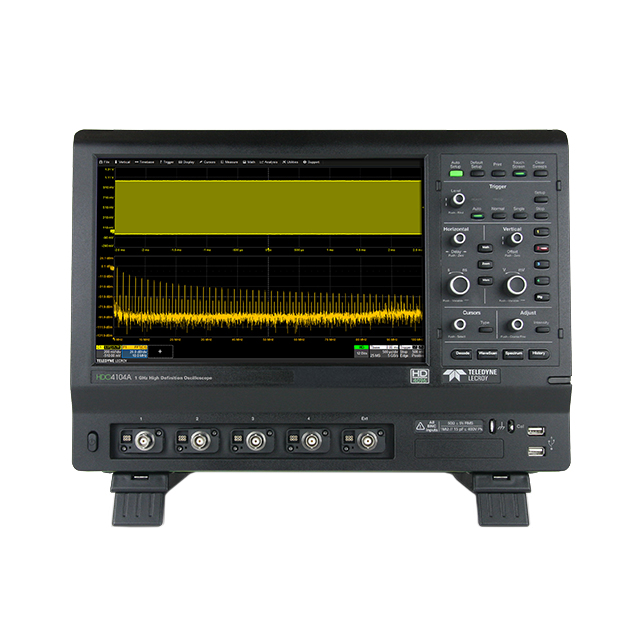

ActiveDIGITAL OSCILLOSCOPE, HDO4000A SERIES, 4 ANALOG, 1 GHZ, 10 GSPS, 12.5 MPTS, 450 PS
Deep-Dive with AI
Search across all available documentation for this part.
HDO4104A
ActiveDIGITAL OSCILLOSCOPE, HDO4000A SERIES, 4 ANALOG, 1 GHZ, 10 GSPS, 12.5 MPTS, 450 PS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HDO4104A |
|---|---|
| Bandwidth | 1 GHz |
| Channels | 4 Analog |
| Display Type | LCD - Color (Touch) |
| Includes | Case, USB Adapter Cable |
| Input Impedance | 1 M, 12 pF |
| Interface | USB, Ethernet, GPIB |
| Memory Size | 12.5 Mpts |
| Probe Type | Passive 10:1 (4) |
| Rise Time (Typ) | 450 ps |
| Sampling Rate (Per Second) | 10 G |
| Type | Bench, Digital |
| Voltage - Input (Max) [Max] | 400 V |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 100 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 24650.12 | |
Description
General part information
HDO4104 Series
HDO4104A is a HDO4000A series digital signal oscilloscope. The HDO4000A with HD4096 high definition technology provides exceptional signal fidelity with 12-bit resolution and a superior oscilloscope experience to deliver faster time to insight. It has a compact form factor with a large 12.1" WXVGA multi-touch display. Ideal for debug and troubleshooting of power electronics designs, digital power management or power integrity analysis, automotive electronics systems, and deeply embedded or mechatronic designs.
