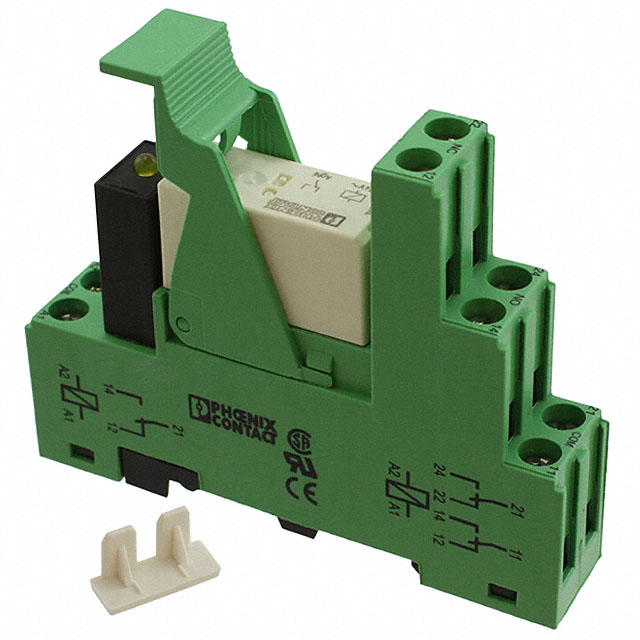

2834339

Obsolete

Phoenix Contact

RELAY GEN PURPOSE SPDT 12A 24V

Search across all available documentation for this part.

Obsolete

Phoenix Contact

RELAY GEN PURPOSE SPDT 12A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	2834339

Coil Current	26 mA
Coil Resistance	923 Ohms
Coil Type	Non Latching
Coil Voltage	24 VAC
Contact Form	SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	12 A
Features	Lighted Indicator, Varistor, Socket Included
Mounting Type	DIN Rail
Operate Time	12 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Release Time	14 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

Part	Coil Current	Features	Release Time	Switching Voltage	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Operate Time	Contact Form	Contact Rating (Current)	Termination Style	Contact Material	Coil Type	Coil Resistance	Coil Voltage	Relay Type	Approval Agency
Phoenix Contact 2834326	19 mA	Diode Lighted Indicator Socket Included	10 ms	250 VAC 250 VDC	DIN Rail	-25 °C	60 °C	8 ms	SPDT (1 Form C)	12 A	Screw Terminal	Silver Nickel (AgNi)	Non Latching	1263 Ohms	24 VDC	General Purpose
Phoenix Contact 2834339	26 mA	Lighted Indicator Socket Included Varistor	14 ms	250 VAC 250 VDC	DIN Rail	-25 °C	60 °C	12 ms	SPDT (1 Form C)	12 A	Screw Terminal	Silver Nickel (AgNi)	Non Latching	923 Ohms	24 VAC	General Purpose
Phoenix Contact 2834342	7 mA	Lighted Indicator Socket Included Varistor	16 ms	250 VAC 250 VDC	DIN Rail	-25 °C	60 °C	12 ms	SPDT (1 Form C)	12 A	Screw Terminal	Silver Nickel (AgNi)	Non Latching	17.1 kOhms	120 VAC	General Purpose
Phoenix Contact 2834313	7.2 mA	Diode Lighted Indicator Test Button	5 ms	250 VAC 250 VDC	Socketable	-55 °C	70 °C	13 ms	4PDT (4 Form C)	5 A	Plug In	Gold (Au) Silver Nickel (AgNi)	Non Latching	17.38 kOhms	125 VDC	General Purpose	cULus EAC UL VDE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay SPDT (1 Form C) 24VAC Coil DIN Rail
