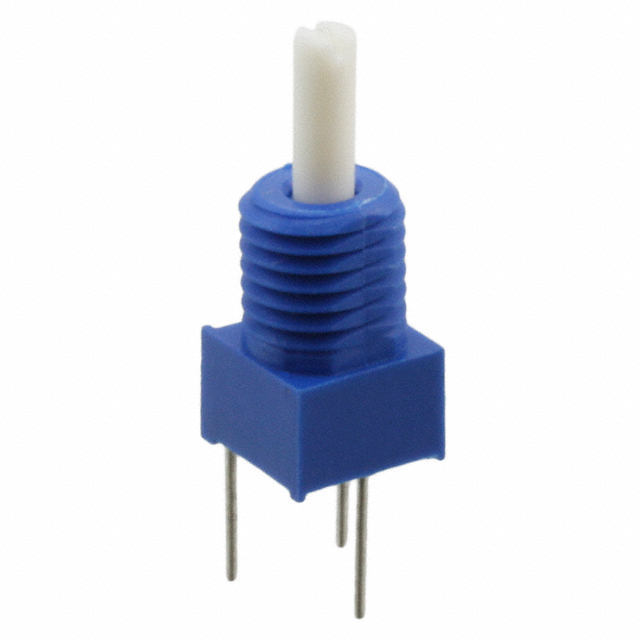

3360Y-1-105

Active

Bourns Inc.

POT 1M OHM 1/4W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3360Y-1-105

Active

Bourns Inc.

POT 1M OHM 1/4W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3360Y-1-105

Actuator Diameter [diameter]	0.093 in
Actuator Diameter [diameter]	2.36 mm
Actuator Length	12.7 mm
Actuator Length [x]	0.5 in
Actuator Type	Slotted
Adjustment Type	Top Adjustment
Built in Switch	False
Bushing Thread	1/4-32
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance (Ohms)	1M
Resistive Material	Conductive Plastic
Rotation	310 °
Size - Body [x]	6.7 mm
Size - Body [x]	0.264 in
Size - Body [y]	0.252 in
Size - Body [y]	6.4 mm
Taper	Linear
Temperature Coefficient	1000 ppm/°C
Termination Style	PC Pins
Tolerance	20 %

3360Y Series

Part	Actuator Type	Adjustment Type	Temperature Coefficient	Taper	Number of Turns	Size - Body [y]	Size - Body [x]	Size - Body [x]	Size - Body [y]	Power (Watts)	Power (Watts)	Bushing Thread	Termination Style	Resistive Material	Resistance (Ohms)	Number of Gangs	Rotation	Tolerance	Actuator Length [x]	Actuator Length	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Resistance (Ohms)
Bourns Inc. 3360Y-1-503LF	Slotted	Top Adjustment	1000 ppm/°C	Linear	1	0.252 in	6.7 mm	0.264 in	6.4 mm	0.25 W	250 mW	1/4-32	PC Pins	Conductive Plastic	50 kOhms	1	310 °	20 %	0.5 in	12.7 mm	0.093 in	2.36 mm
Bourns Inc. 3360Y-1-104	Slotted	Top Adjustment	1000 ppm/°C	Linear	1	0.252 in	6.7 mm	0.264 in	6.4 mm	0.25 W	250 mW	1/4-32	PC Pins	Conductive Plastic	100 kOhms	1	310 °	20 %	0.5 in	12.7 mm	0.093 in	2.36 mm
Bourns Inc. 3360Y-1-105LF	Slotted	Top Adjustment	1000 ppm/°C	Linear	1	0.252 in	6.7 mm	0.264 in	6.4 mm	0.25 W	250 mW	1/4-32	PC Pins	Conductive Plastic		1	310 °	20 %	0.5 in	12.7 mm	0.093 in	2.36 mm	1M
Bourns Inc. 3360Y-1-104LF	Slotted	Top Adjustment	1000 ppm/°C	Linear	1	0.252 in	6.7 mm	0.264 in	6.4 mm	0.25 W	250 mW	1/4-32	PC Pins	Conductive Plastic	100 kOhms	1	310 °	20 %	0.5 in	12.7 mm	0.093 in	2.36 mm
Bourns Inc. 3360Y-1-103LF	Slotted	Top Adjustment	1000 ppm/°C	Linear	1	0.252 in	6.7 mm	0.264 in	6.4 mm	0.25 W	250 mW	1/4-32	PC Pins	Conductive Plastic		1	310 °	20 %	0.5 in	12.7 mm	0.093 in	2.36 mm	10k
Bourns Inc. 3360Y-1-203	Slotted	Top Adjustment	1000 ppm/°C	Linear	1	0.252 in	6.7 mm	0.264 in	6.4 mm	0.25 W	250 mW	1/4-32	PC Pins	Conductive Plastic	20 kOhms	1	310 °	20 %	0.5 in	12.7 mm	0.093 in	2.36 mm
Bourns Inc. 3360Y-1-105	Slotted	Top Adjustment	1000 ppm/°C	Linear	1	0.252 in	6.7 mm	0.264 in	6.4 mm	0.25 W	250 mW	1/4-32	PC Pins	Conductive Plastic		1	310 °	20 %	0.5 in	12.7 mm	0.093 in	2.36 mm	1M
Bourns Inc. 3360Y-1-203LF	Slotted	Top Adjustment	1000 ppm/°C	Linear	1	0.252 in	6.7 mm	0.264 in	6.4 mm	0.25 W	250 mW	1/4-32	PC Pins	Conductive Plastic	20 kOhms	1	310 °	20 %	0.5 in	12.7 mm	0.093 in	2.36 mm
Bourns Inc. 3360Y-1-502LF	Slotted	Top Adjustment	1000 ppm/°C	Linear	1	0.252 in	6.7 mm	0.264 in	6.4 mm	0.25 W	250 mW	1/4-32	PC Pins	Conductive Plastic	5 kOhms	1	310 °	20 %	0.5 in	12.7 mm	0.093 in	2.36 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 3.82

Description

General part information

3360Y Series

1M Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.25W, 1/4W PC Pins
