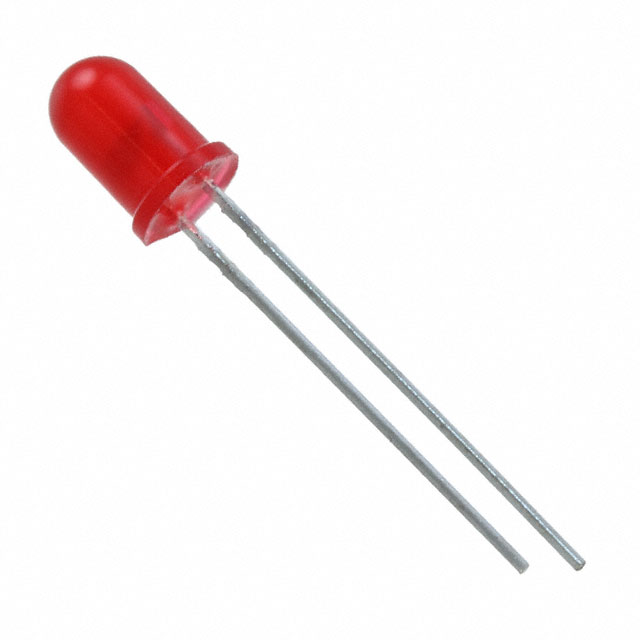

SLR-56VRTB7

Active

Rohm Semiconductor

LED RED DIFFUSED T/H

Search across all available documentation for this part.

Active

Rohm Semiconductor

LED RED DIFFUSED T/H

Technical Specifications

Parameters and characteristics for this part

Circular LED lamp

Part	Configuration	Current - Test	Lens Style	Lens Transparency	Color	Lens Size	Lens Size	Voltage - Forward (Vf) (Typ)	Lens Color	Viewing Angle [custom]	Millicandela Rating	Mounting Type	Height (Max) [Max] [z]	Supplier Device Package	Wavelength - Dominant	Package / Case	Lens Size [diameter]
Rohm Semiconductor SLR-56MC3F	Standard	10 mA	Round with Domed Top	Clear	Green	T-1 3/4	5 mm	2.1 V	Green	40 °	40 mcd	Through Hole	8.9 mm	T-1 3/4	572 nm	Radial
Rohm Semiconductor SLR-56YYT32	Standard	10 mA	Round with Domed Top	Diffused	Yellow			2.1 V	Yellow	40 °	16 mcd	Through Hole	8.9 mm	T-1 3/4	587 nm	Radial	5 mm Dia
Rohm Semiconductor SLR-56DCT32	Standard	10 mA	Round with Domed Top	Clear				2 V	Orange	40 °	25 mcd	Through Hole	8.9 mm	T-1 3/4	605 nm	Radial	5 mm Dia
Rohm Semiconductor SLR-56YY3F	Standard	10 mA	Round with Domed Top	Diffused	Yellow	T-1 3/4	5 mm	2.1 V	Yellow	40 °	16 mcd	Through Hole	8.9 mm	T-1 3/4	587 nm	Radial
Rohm Semiconductor SLR-56VRTB7	Standard	10 mA	Round with Domed Top	Diffused	Red			2 V	Red	40 °	10 mcd	Through Hole	8.9 mm		630 nm	Radial	5 mm Dia
Rohm Semiconductor SLR-56MGT32	Standard	10 mA	Round with Domed Top	Diffused	Green			2.1 V	Green	40 °	16 mcd	Through Hole	8.9 mm	T-1 3/4	572 nm	Radial	5 mm Dia
Rohm Semiconductor SLR-56VRTE7	Standard	10 mA	Round with Domed Top	Diffused	Red			2 V	Red	40 °	10 mcd	Through Hole	8.9 mm		630 nm	Radial	5 mm Dia
Rohm Semiconductor SLR-56YYTB7	Standard	10 mA	Round with Domed Top	Diffused	Yellow			2.1 V	Yellow	40 °	16 mcd	Through Hole	8.9 mm		587 nm	Radial	5 mm Dia

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ROHM's lamp LED lineup covers various types including high-brightness/high-reliability LED lamps suitable outdoor displays.
