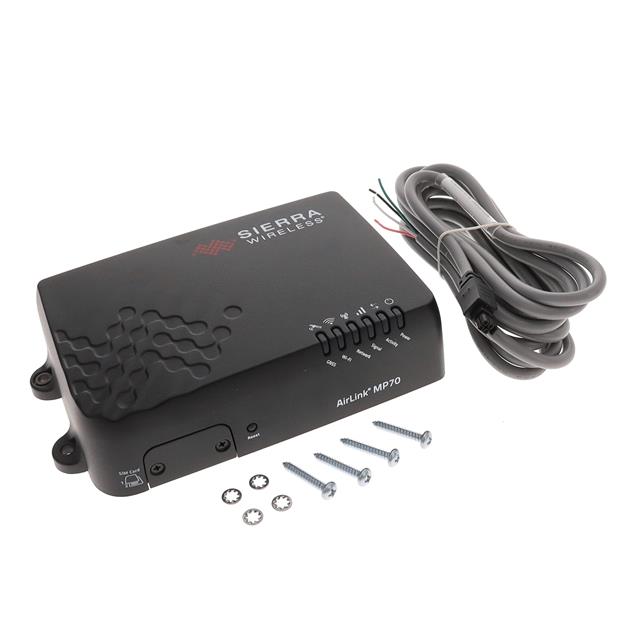

MP70_1104071

Active

Sierra Wireless AirLink

ROUTER LTE-A PRO NA+DC CABLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSierra Wireless 2020 AirLink® Networking Portfolio Datasheet

MP70_1104071

Active

Sierra Wireless AirLink

ROUTER LTE-A PRO NA+DC CABLE

Deep-Dive with AI

DocumentsSierra Wireless 2020 AirLink® Networking Portfolio Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MP70_1104071

Applications	General Purpose
Data Rate (Max) [Max]	50 Mbps
Frequency	1.7 GHz, 1900 MHz, 1.5 GHz, 850 MHz, 800 MHz, 1800 MHz, 700 MHz, 900 MHz, 2600 MHz
Interface	RJ-45, USB, RS-232, Ethernet
Modulation or Protocol	LTE, HSPA+, Cellular, WCDMA
Power - Output	21 dBm
Sensitivity	-162 dBm
Voltage - Supply [Max]	36 V
Voltage - Supply [Min]	7 V

MP70 Series

Part	Modulation or Protocol	Power - Output	Interface	Data Rate (Max)	Sensitivity	Applications	Frequency	Voltage - Supply [Max]	Voltage - Supply [Min]	Data Rate (Max) [Max]
Sierra Wireless AirLink MP70_1102709	Cellular HSPA+ LTE WCDMA	21 dBm	Ethernet RJ-45 RS-232 USB	300 Mbps	-162 dBm	General Purpose	700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz 2600 MHz	36 V	7 V
Sierra Wireless AirLink MP70_1102743	Cellular HSPA+ LTE WCDMA	21 dBm	Ethernet RJ-45 RS-232 USB	300 Mbps	-162 dBm	General Purpose	700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz 2600 MHz	36 V	7 V
Sierra Wireless AirLink MP70_1104072	Cellular HSPA+ LTE WCDMA	21 dBm	Ethernet RJ-45 RS-232 USB		-162 dBm	General Purpose	1.5 GHz 1.7 GHz 2.3 GHz 700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz 2600 MHz	36 V	7 V	600 Mbps
Sierra Wireless AirLink MP70_1104074	Cellular HSPA+ LTE WCDMA	21 dBm	Ethernet RJ-45 RS-232 USB		-162 dBm	General Purpose	1.5 GHz 1.7 GHz 2.3 GHz 700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2100 MHz 2600 MHz	36 V	7 V	600 Mbps
Sierra Wireless AirLink MP70_1102713	Cellular HSPA+ LTE WCDMA	21 dBm	Ethernet RJ-45 RS-232 USB	300 Mbps	-162 dBm	General Purpose	1.5 GHz 1.7 GHz 700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 2100 MHz	36 V	7 V
Sierra Wireless AirLink MP70_1104073	Cellular HSPA+ LTE WCDMA	21 dBm	Ethernet RJ-45 RS-232 USB		-162 dBm	General Purpose	1.5 GHz 1.7 GHz 700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2600 MHz	36 V	7 V	50 Mbps
Sierra Wireless AirLink MP70_1102745	Cellular HSPA+ LTE WCDMA	21 dBm	Ethernet RJ-45 RS-232 USB	300 Mbps	-162 dBm	General Purpose	1.5 GHz 1.7 GHz 700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 2100 MHz	36 V	7 V
Sierra Wireless AirLink MP70_1104071	Cellular HSPA+ LTE WCDMA	21 dBm	Ethernet RJ-45 RS-232 USB		-162 dBm	General Purpose	1.5 GHz 1.7 GHz 700 MHz 800 MHz 850 MHz 900 MHz 1800 MHz 1900 MHz 2600 MHz	36 V	7 V	50 Mbps

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 999.01

Description

General part information

MP70 Series

4G/3G Cellular, HSPA+, LTE, WCDMA Router AT&T, Sprint, Verizon Ethernet, RJ-45, RS-232, USB

Documents

Technical documentation and resources
