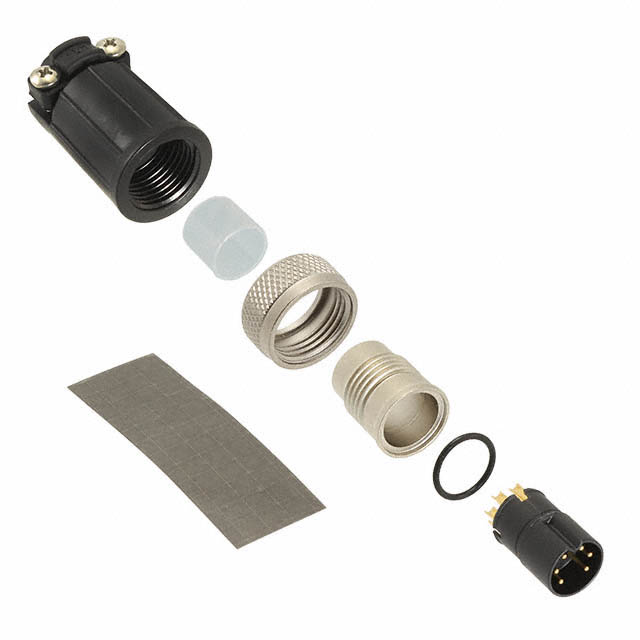

SF6282-6PG-520

Active

Conxall/Switchcraft

CONN PLUG MALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SF6282-6PG-520

Active

Conxall/Switchcraft

CONN PLUG MALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SF6282-6PG-520

Backshell Material, Plating	Nylon, Polyamide (PA), Glass Filled
Color	Black, Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	IP66/IP68
Insert Material	Polyester Resin
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Alloy
Shielding	Shielded

SF6282 Series

Part	Shell Material	Connector Type	Ingress Protection	Orientation	Mounting Type	Shell Finish	Contact Finish - Mating	Insert Material	Contact Material	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Shielding	Features	Color	Number of Positions
Conxall/Switchcraft SF6282-3PG-520	Copper Alloy	Male Pins Plug	IP66/IP68	Keyed	Free Hanging (In-Line)	Nickel	Gold	Polyester Resin	Copper Alloy	Glass Filled Nylon Polyamide (PA)	-40 °C	120 °C	Metal	Shielded	Backshell Cable Clamp Coupling Nut	Black Silver
Conxall/Switchcraft SF6282-2PG-520	Copper Alloy	Male Pins Plug	IP66/IP68	Keyed	Free Hanging (In-Line)	Nickel	Gold	Polyester Resin	Copper Alloy	Glass Filled Nylon Polyamide (PA)	-40 °C	120 °C	Metal	Shielded	Backshell Cable Clamp Coupling Nut	Black Silver	2
Conxall/Switchcraft SF6282-4SG-520	Copper Alloy	Female Sockets Plug	IP66/IP68	Keyed	Free Hanging (In-Line)	Nickel	Gold	Polyester Resin	Copper Alloy	Glass Filled Nylon Polyamide (PA)	-40 °C	120 °C	Metal	Shielded	Backshell Cable Clamp Coupling Nut	Black Silver	4
Conxall/Switchcraft SF6282-4PG-520	Copper Alloy	Male Pins Plug	IP66/IP68	Keyed	Free Hanging (In-Line)	Nickel	Gold	Polyester Resin	Copper Alloy	Glass Filled Nylon Polyamide (PA)	-40 °C	120 °C	Metal	Shielded	Backshell Cable Clamp Coupling Nut	Black Silver	4
Conxall/Switchcraft SF6282-3SG-520	Copper Alloy	Female Sockets Plug	IP66/IP68	Keyed	Free Hanging (In-Line)	Nickel	Gold	Polyester Resin	Copper Alloy	Glass Filled Nylon Polyamide (PA)	-40 °C	120 °C	Metal	Shielded	Backshell Cable Clamp Coupling Nut	Black Silver
Conxall/Switchcraft SF6282-6PG-520	Copper Alloy	Male Pins Plug	IP66/IP68	Keyed	Free Hanging (In-Line)	Nickel	Gold	Polyester Resin	Copper Alloy	Glass Filled Nylon Polyamide (PA)	-40 °C	120 °C	Metal	Shielded	Backshell Cable Clamp Coupling Nut	Black Silver	6
Conxall/Switchcraft SF6282-7SG-520	Copper Alloy	Female Sockets Plug	IP66/IP68	Keyed	Free Hanging (In-Line)	Nickel	Gold	Polyester Resin	Copper Alloy	Glass Filled Nylon Polyamide (PA)	-40 °C	120 °C	Metal	Shielded	Backshell Cable Clamp Coupling Nut	Black Silver	7

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.08
		10	$ 35.66
		25	$ 32.35
		50	$ 30.12
		100	$ 28.10
		250	$ 25.72

Description

General part information

SF6282 Series

6 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources
