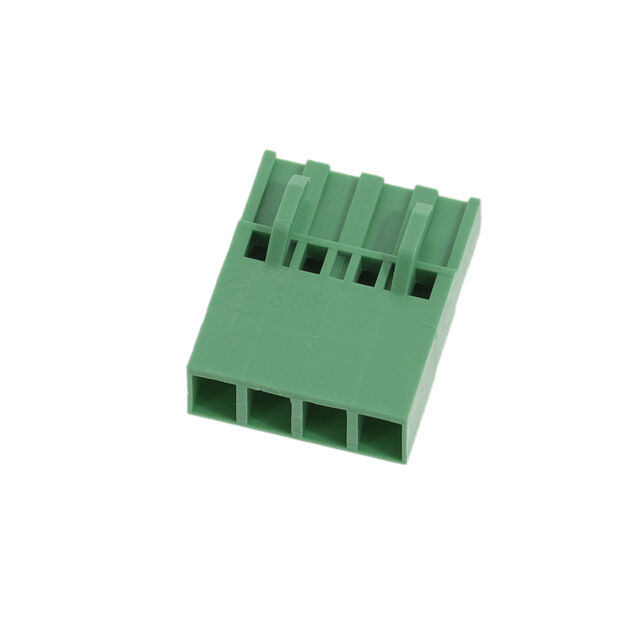

KI0450500000G

Active

Amphenol Anytek

TERM BLOCK PLUG 4POS STR 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

KI0450500000G

Active

Amphenol Anytek

TERM BLOCK PLUG 4POS STR 5.08MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KI0450500000G

Color	Green
Current - UL	10 A
Housing Material	Thermoplastic
Insulation Height	10 mm
Insulation Height	0.394 "
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	4
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	4
Termination Style	Crimp
Type	Plug Housing for Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - mm² [Max]	2.5 mm²
Wire Gauge or Range - mm² [Min]	0.5 mm²

KI04 Series

Part	Type	Material Flammability Rating	Positions Per Level	Pitch [x]	Pitch [x]	Termination Style	Current - UL	Housing Material	Voltage - UL	Insulation Height	Insulation Height	Mounting Type	Color	Number of Positions	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Number of Levels	Insulation Height [z]	Insulation Height [z]	Features
Amphenol Anytek KI0430500000G	Plug Housing for Female Sockets	UL94 V-0	4	0.15 in	3.81 mm	Crimp	8 A	Thermoplastic	160 V	5.9 mm	0.232 in	Free Hanging (In-Line)	Green	4	1 mm²	1.2 mm²	1
Amphenol Anytek KI0450510000G	Plug Housing for Female Sockets	UL94 V-0	4	0.2 in	5.08 mm	Crimp	10 A	Thermoplastic	300 V			Free Hanging (In-Line)	Green	4	0.5 mm²	2.5 mm²	1	10.49 mm	0.413 in
Amphenol Anytek KI0430510000G	Plug Housing for Female Sockets	UL94 V-0	4	0.15 in	3.81 mm	Crimp	8 A	Thermoplastic	160 V	8.71 mm	0.343 in	Free Hanging (In-Line)	Green	4	1 mm²	1.2 mm²	1
Amphenol Anytek KI0450520000G	Plug Housing for Female Sockets	UL94 V-0	4	0.2 in	5.08 mm	Crimp	10 A	Thermoplastic	300 V	10 mm	0.394 "	Free Hanging (In-Line)	Green	4	0.5 mm²	2.5 mm²	1			Mating Flange Retention Latches (Non-Wire Side)
Amphenol Anytek KI0430520000G	Plug Housing for Female Sockets	UL94 V-0	4	0.15 in	3.81 mm	Crimp	8 A	Thermoplastic	160 V	5.9 mm	0.232 in	Free Hanging (In-Line)	Green	4	1 mm²	1.2 mm²	1			Mating Flange
Amphenol Anytek KI0450500000G	Plug Housing for Female Sockets	UL94 V-0	4	0.2 in	5.08 mm	Crimp	10 A	Thermoplastic	300 V	10 mm	0.394 "	Free Hanging (In-Line)	Green	4	0.5 mm²	2.5 mm²	1
Amphenol Anytek KI0430530000G	Plug Housing for Female Sockets	UL94 V-0	4	0.15 in	3.81 mm	Crimp	8 A	Thermoplastic	160 V	8.71 mm	0.343 in	Free Hanging (In-Line)	Green	4	1 mm²	1.2 mm²	1			Mating Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.86
		10	$ 0.47
		100	$ 0.31
		3000	$ 0.17
		6000	$ 0.17
		12000	$ 0.16

Description

General part information

KI04 Series

4 Position Terminal Block Plug Housing for Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources

No documents available
