EN4DSC24228GY

Active

Hammond Manufacturing

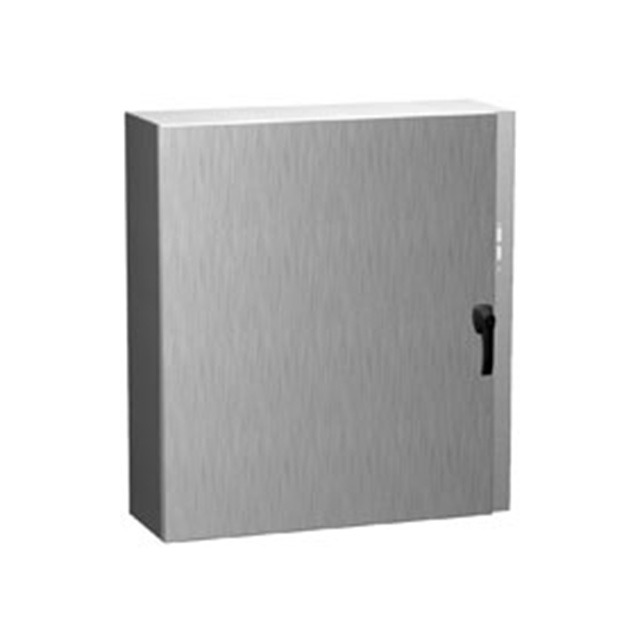

BOX STEEL GRAY 24"L X 22"W

Search across all available documentation for this part.

Active

Hammond Manufacturing

BOX STEEL GRAY 24"L X 22"W

Technical Specifications

Parameters and characteristics for this part

Specification	EN4DSC24228GY

Area (L x W) [custom]	528 in²
Area (L x W) [custom]	3406 cm²
Color	Gray
Container Type	Box
Design	Hinged Door, Lid
Features	Separate Panel or Cover Thickness
Height [z]	8 "
Height [z]	203.2 mm
Material	Metal, Steel
Ratings	IP66, UL-508, NEMA 12, NEMA 4, NEMA 3R, NEMA 13, JIC EGP-1-1967
Size / Dimension [x]	24 in
Size / Dimension [x]	609.6 mm
Size / Dimension [y]	22 in
Size / Dimension [y]	558.8 mm
Thickness	16 Gauge
Weight	30 lbs
Weight	13.6 kg

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Features	Weight	Weight	Material	Design	Container Type	Thickness	Color	Height [z]	Height [z]	Area (L x W) [custom]	Area (L x W) [custom]	Ratings
Hammond Manufacturing EN4DSC24228GY	24 in	609.6 mm	22 in	558.8 mm	Separate Panel or Cover Thickness	30 lbs	13.6 kg	Metal Steel	Hinged Door Lid	Box	16 Gauge	Gray	8 "	203.2 mm	528 in²	3406 cm²	IP66 JIC EGP-1-1967 NEMA 12 NEMA 13 NEMA 3R NEMA 4 UL-508

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 559.70

General part information

Box Metal, Steel Gray Hinged Door, Lid 24.000" L x 22.000" W (609.60mm x 558.80mm) X 8.000" (203.20mm)
