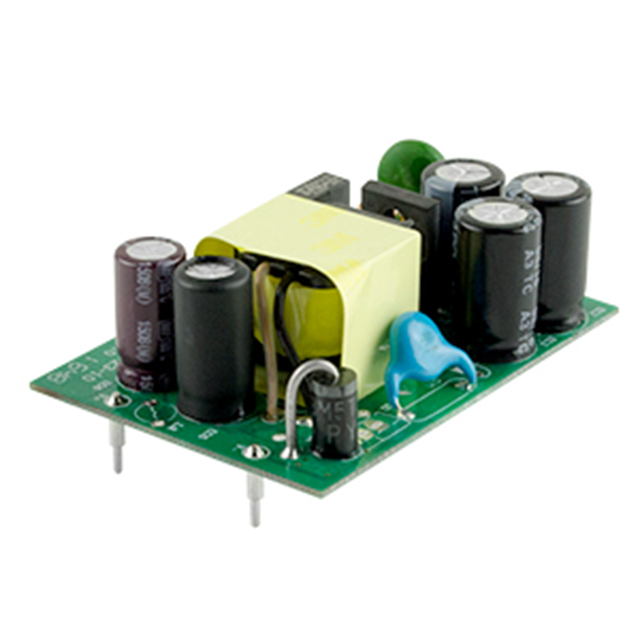

VOF-15B-S12
ActiveCUI Inc.
AC/DC POWER SUPPLY SINGLE-OUT 12V 1.25A 15W 4-PIN BOX
Deep-Dive with AI
Search across all available documentation for this part.
VOF-15B-S12
ActiveCUI Inc.
AC/DC POWER SUPPLY SINGLE-OUT 12V 1.25A 15W 4-PIN BOX
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VOF-15B-S12 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | UL, IEC, FCC, EN, CB Scheme |
| Current - Output (Max) [Max] | 1.25 A |
| Efficiency | 84.5 % |
| Features | Universal Input |
| Line Regulation | 0.5 % |
| Load Regulation | 1 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 4-DIP Module |
| Power (Watts) | 15 W |
| Size / Dimension [x] | 59.2 mm |
| Size / Dimension [x] | 2.33 in |
| Size / Dimension [y] | 42.3 mm |
| Size / Dimension [y] | 1.67 " |
| Size / Dimension [z] | 22.9 mm |
| Size / Dimension [z] | 0.9 " |
| Standard Number | 61000-3-2, 60950-1, 61000-3-3, 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 13.70 | |
| 5 | $ 13.50 | |||
| 10 | $ 13.31 | |||
| 25 | $ 12.52 | |||
| 50 | $ 12.13 | |||
| 100 | $ 11.74 | |||
| 250 | $ 11.35 | |||
| 500 | $ 10.96 | |||
Description
General part information
VOF-15B Series
Open Frame AC DC Converters 1 Output 12V 1.25A 85 ~ 264 VAC, 120 ~ 370 VDC Input
Documents
Technical documentation and resources
No documents available
