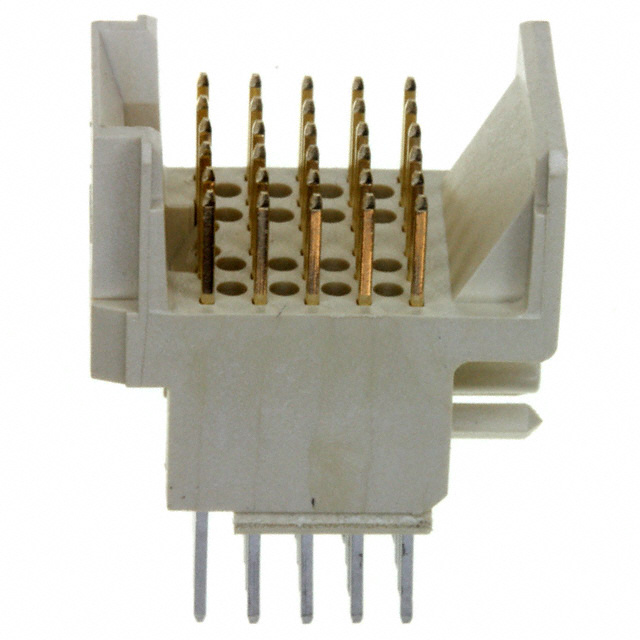

MP2-PS030-51S1-LR

Obsolete

3M (TC)

CONN HEADER FUTUREBUS+ 30POS PCB

Search across all available documentation for this part.

Obsolete

3M (TC)

CONN HEADER FUTUREBUS+ 30POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	MP2-PS030-51S1-LR

Color	Beige
Connector Style	Futurebus+®
Connector Type	Header, Male Pins
Connector Usage	Backplane
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Current Rating (Amps)	1.5 A
Features	Board Guide, Inverse
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Solder

Part	Connector Type	Number of Positions	Current Rating (Amps)	Material Flammability Rating	Contact Finish	Connector Usage	Number of Positions Loaded	Color	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Rows	Connector Style	Mounting Type	Termination	Features	Operating Temperature [Min]	Operating Temperature [Max]
3M (TC) MP2-PS030-51S1-LR	Header Male Pins	30	1.5 A	UL94 V-0	Gold	Backplane	All	Beige	3 Áin	0.076 Ám	0.079 in	2 mm	5	Futurebus+®	Through Hole	Solder	Board Guide Inverse	-55 °C	125 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

30 Connector Header, Male Pins Through Hole Beige Futurebus+®
