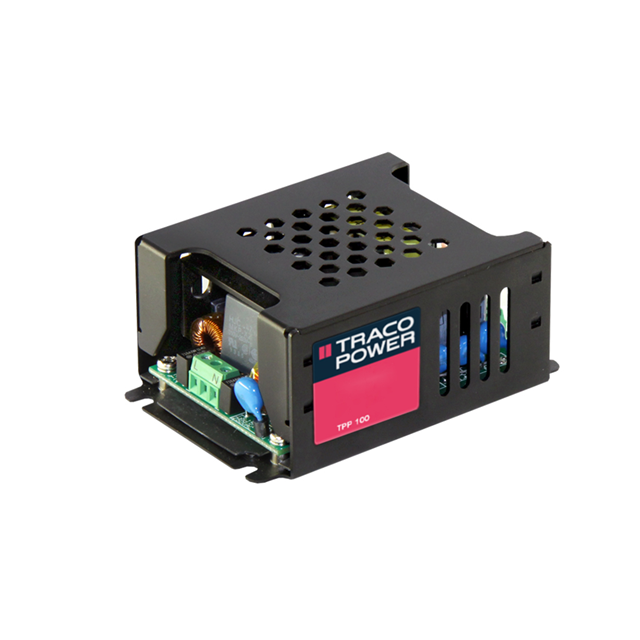

TPP 100-124

Active

Traco Power

AC/DC CONVERTER 24V 100W

Search across all available documentation for this part.

Active

Traco Power

AC/DC CONVERTER 24V 100W

Technical Specifications

Parameters and characteristics for this part

Specification	TPP 100-124

Applications	ITE (Commercial), Medical
Approval Agency	CB, cURus, CE
Current - Output 1	4.17 A
Efficiency	92 %
Features	Adjustable Output, Universal Input, IP20
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	100 W
Size / Dimension [x]	3.6 in
Size / Dimension [x]	91.4 mm
Size / Dimension [y]	2.44 "
Size / Dimension [y]	62 mm
Size / Dimension [z]	39.1 mm
Size / Dimension [z]	1.54 "
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

Part	Power (Watts)	Number of Outputs	Mounting Type	Type	Voltage - Input [Min]	Voltage - Input [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Applications	Approval Agency	Voltage - Isolation	Current - Output 1
Traco Power TPP 100-112A-J	100 W	1	Chassis Mount	Open Frame	85 VAC 120 VDC	264 VAC 370 VDC	85 °C	-25 °C	Adjustable Output Universal Input	12 V	3 "	76.2 mm	29.5 mm	2 in	50.8 mm	1.16 "	91 %	ITE (Commercial) Medical	CB CE cURus	4000 V	8.34 A
Traco Power TPP 100-128	100 W	1	Chassis Mount	Enclosed	85 VAC 120 VDC	264 VAC 370 VDC	85 °C	-25 °C	Adjustable Output PFC Universal Input	28 V	3.6 in	91.4 mm	39.1 mm	2.44 "	62 mm	1.54 "	92 %	ITE (Commercial) Medical	CB CE cURus	4000 V	3.58 A
Traco Power TPP 100-124	100 W	1	Chassis Mount	Enclosed	85 VAC 120 VDC	264 VAC 370 VDC	85 °C	-25 °C	Adjustable Output IP20 Universal Input	24 V	3.6 in	91.4 mm	39.1 mm	2.44 "	62 mm	1.54 "	92 %	ITE (Commercial) Medical	CB CE cURus	4000 V	4.17 A
Traco Power TPP 100-124A-J	100 W	1	Chassis Mount	Open Frame	85 VAC 120 VDC	264 VAC 370 VDC	85 °C	-25 °C	Adjustable Output Universal Input	24 V	3 "	76.2 mm	29.5 mm	2 in	50.8 mm	1.16 "	92 %	ITE (Commercial) Medical	CB CE cURus	4000 V	4.17 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC, 120 ~ 370 VDC Input
