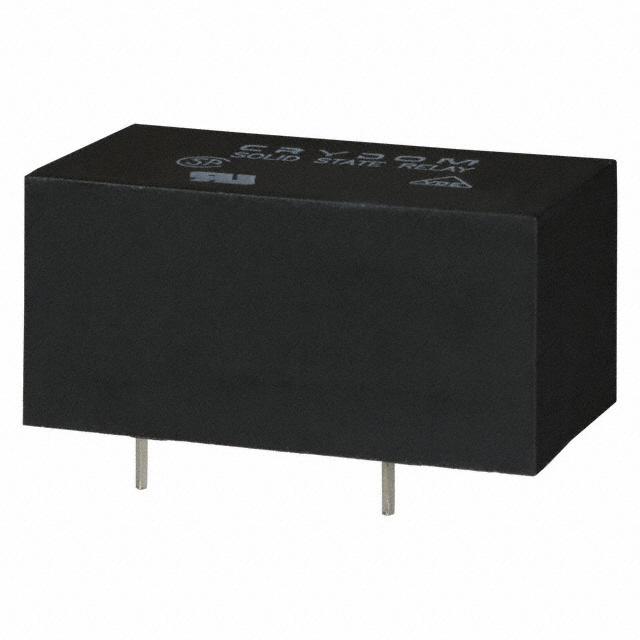

S3012A
ObsoleteSensata-Crydom
SSR RELAY SPST-NO 3A 20-140V
Deep-Dive with AI
Search across all available documentation for this part.
S3012A
ObsoleteSensata-Crydom
SSR RELAY SPST-NO 3A 20-140V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S3012A |
|---|---|
| Approval Agency | UL, VDE, CSA |
| Load Current | 3 A |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | AC, Zero Cross |
| Package / Case | Module |
| Termination Style | PC Pin |
| Voltage - Input [Max] | 8 VDC |
| Voltage - Input [Min] | 3.5 V |
| Voltage - Load [Max] | 140 V |
| Voltage - Load [Min] | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
S3012 Series
Solid State SPST-NO (1 Form A) Module
