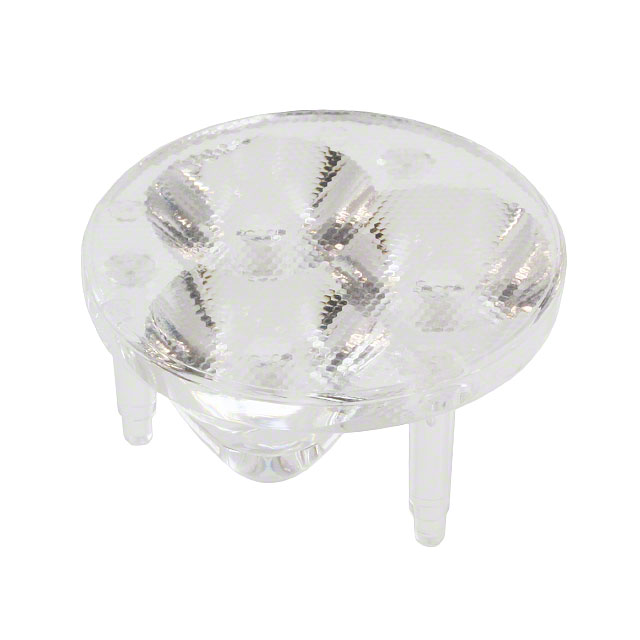

C10754_CUTE-3-SS
ActiveLED LENS, MULTI-LED, SPOT, TRANSPARENT, 35 MM, ROUND, PMMA (POLYMETHYLMETHACRYLATE)
Deep-Dive with AI
Search across all available documentation for this part.
C10754_CUTE-3-SS
ActiveLED LENS, MULTI-LED, SPOT, TRANSPARENT, 35 MM, ROUND, PMMA (POLYMETHYLMETHACRYLATE)
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C10754_CUTE-3-SS |
|---|---|
| Color | Clear |
| For Use With/Related Manufacturer | Seoul, LG Innotek, Ledil, Cree, Lumileds Nichia, Osram |
| Lens Size [diameter] | 35 mm |
| Lens Transparency | Diffused |
| Material | Acrylic |
| Mounting Type | Adhesive |
| Number of LEDs | 3 |
| Optical Pattern | Spot |
| Type | Lens with Integrated Mount |
| Viewing Angle [Max] | 20 ° |
| Viewing Angle [Min] | 10 ° |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
C10754 Series
The C10754_CUTE-3-SS is a transparent 35mm round multi-LED Smooth Spot Lens made of optical grade PMMA (Polymethylmethacrylate), allows use of high current and temperature conditions (105°C/220°F). It is specially designed for use with for Cree's XLAMP XP-E series of LEDs. A special care has been taken to make uniform white or warm white illumination and lenses work well with other colours also.
