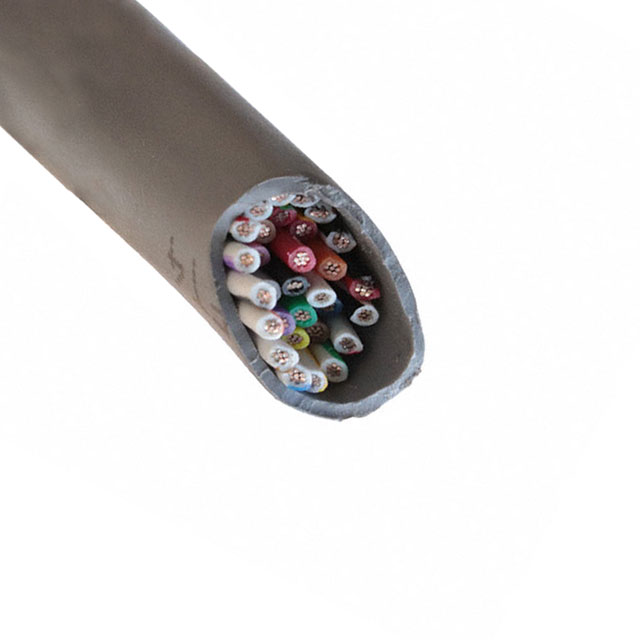

1181/30C SL001

Active

ALPHA WIRE

CABLE 30COND 22AWG SLATE 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 30COND 22AWG SLATE 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	1181/30C SL001

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.385 "
Jacket (Insulation) Diameter [diameter]	9.78 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	30
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Material	Cable Type	Length	Length	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Conductor Insulation	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Usage	Jacket Color	Wire Gauge
ALPHA WIRE 1181/30C SL001	Copper Tinned	Multi-Conductor	1000 ft	304.8 m	30	-20 C	80 C	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	300 V	7	30 AWG	0.385 "	9.78 mm	Communication Control	Slate	22 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 4658.72

General part information

30 Conductor Multi-Conductor Cable Slate 22 AWG 1000.0' (304.8m)
