19302101750

Active

HARTING Technology Group

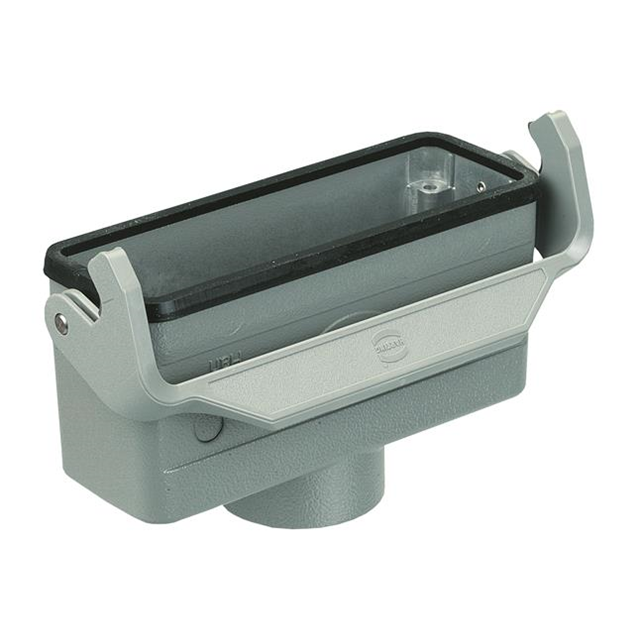

10B HOOD CABLE TO CABLE, SINGLE LEVER, LOW CONSTRUCTION, M20 - HIGH MATING CYCLE VERSION

Search across all available documentation for this part.

Active

HARTING Technology Group

10B HOOD CABLE TO CABLE, SINGLE LEVER, LOW CONSTRUCTION, M20 - HIGH MATING CYCLE VERSION

Technical Specifications

Parameters and characteristics for this part

Specification	19302101750

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10B
Size / Dimension [x]	2.858 "
Size / Dimension [x]	72.6 mm
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.693 in
Size / Dimension [z]	47.4 mm
Size / Dimension [z]	1.866 "
Style	Top Entry
Thread Size	M20

Part	Housing Material	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Features	Size	Housing Color	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]	Thread Size	Style	Lock Location	Connector Type	Ingress Protection
HARTING Technology Group 19302101750	Aluminum Die Cast	43 mm	1.693 in	2.858 "	47.4 mm	72.6 mm	1.866 "	Cable to Cable	10B	Gray	Powder Coated	125 °C	-40 °C	M20	Top Entry	Locking Clip (1) on Hood	Hood - Coupling	IP65 - Dust Tight Water Resistant
HARTING Technology Group 19302101541	Aluminum Die Cast	43 mm	1.693 in	2.858 "	57 mm	72.6 mm	2.244 "		10B	Gray	Powder Coated	125 °C	-40 °C	M25	Side Entry	Locking Clip (1) on Base Bottom	Hood	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood - Coupling Connector Top Entry M20 10B IP65 - Dust Tight, Water Resistant
