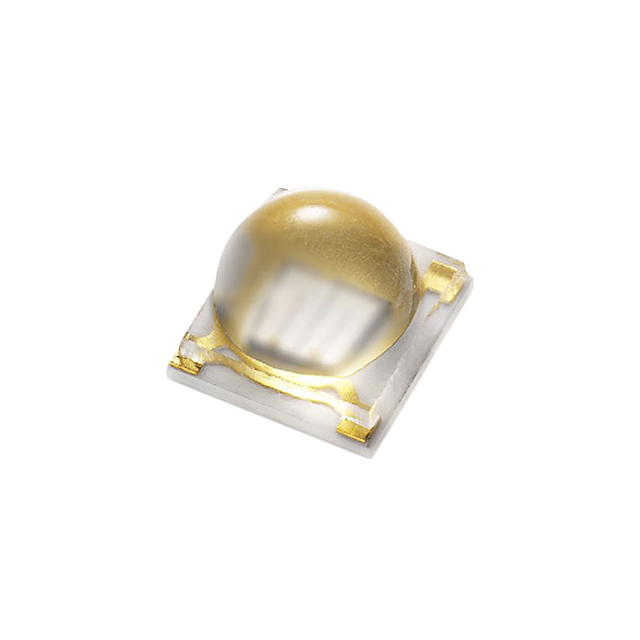

VLMU3510-365-130
ActiveVishay General Semiconductor - Diodes Division
LED UV 367NM 700MA SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VLMU3510-365-130
ActiveVishay General Semiconductor - Diodes Division
LED UV 367NM 700MA SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VLMU3510-365-130 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 700 mA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Top View |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Radiant Intensity (Ie) Min @ If [Min] | 160 mW/sr |
| Type | Ultraviolet (UV) |
| Viewing Angle | 130 ° |
| Voltage - Forward (Vf) (Typ) | 4 V |
| Wavelength | 367 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 14.19 | |
| 10 | $ 10.71 | |||
| 100 | $ 8.99 | |||
| Digi-Reel® | 1 | $ 14.19 | ||
| 10 | $ 10.71 | |||
| 100 | $ 8.99 | |||
| Tape & Reel (TR) | 500 | $ 8.26 | ||
| 1000 | $ 7.80 | |||
Description
General part information
VLMU3510 Series
Ultraviolet (UV) Emitter 367nm 4V 700mA 160mW/sr @ 350mA 130° 2-SMD, No Lead Exposed Pad
