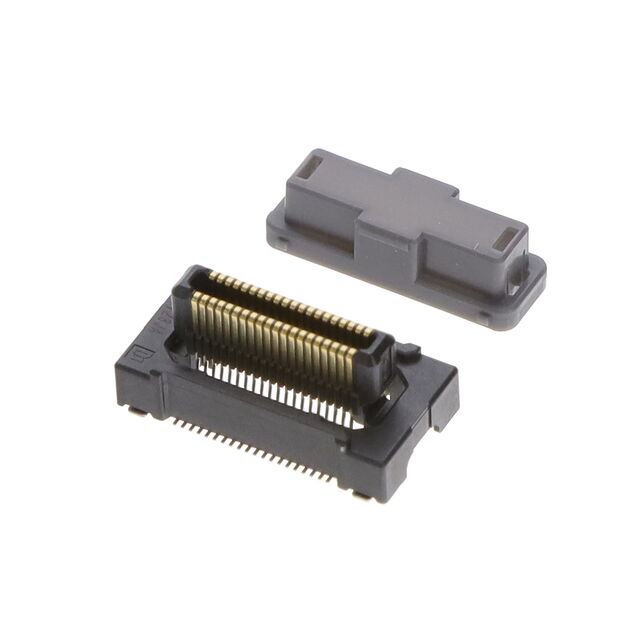

145656040003829+T

Active

Kyocera AVX

5656 SERIES, FLOXY, 0.5MM PITCH,

Search across all available documentation for this part.

Active

Kyocera AVX

5656 SERIES, FLOXY, 0.5MM PITCH,

Technical Specifications

Parameters and characteristics for this part

Specification	145656040003829+T

Connector Type	Plug, Floating
Features	Pick and Place, Board Guide, Solder Retention
Height Above Board [z]	0.287 in
Height Above Board [z]	7.3 mm
Mated Stacking Heights [Max]	19 mm
Mated Stacking Heights [Min]	17 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Number of Rows	Pitch [x]	Pitch [x]	Mated Stacking Heights [z]	Contact Finish	Features	Number of Positions	Mounting Type	Connector Type	Height Above Board [z]	Height Above Board [z]	Mated Stacking Heights [Min]	Mated Stacking Heights [Max]
Kyocera AVX 145656060001829+T	2	0.5 mm	0.02 in	17 mm	Gold	Board Guide Solder Retention	60	Surface Mount	Floating Plug	0.287 in	7.3 mm
Kyocera AVX 145656052002829+T	2	0.5 mm	0.02 in	17 mm	Gold	Board Guide Solder Retention	52	Surface Mount	Floating Plug	0.287 in	7.3 mm
Kyocera AVX 145656040003829+T	2	0.5 mm	0.02 in			Board Guide Pick and Place Solder Retention	40	Surface Mount	Floating Plug	0.287 in	7.3 mm	17 mm	19 mm
Kyocera AVX 145656040001829+T	2	0.5 mm	0.02 in			Board Guide Solder Retention	40	Surface Mount	Floating Plug	0.287 in	7.3 mm	17 mm	19 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Connector Plug, Floating Surface Mount
