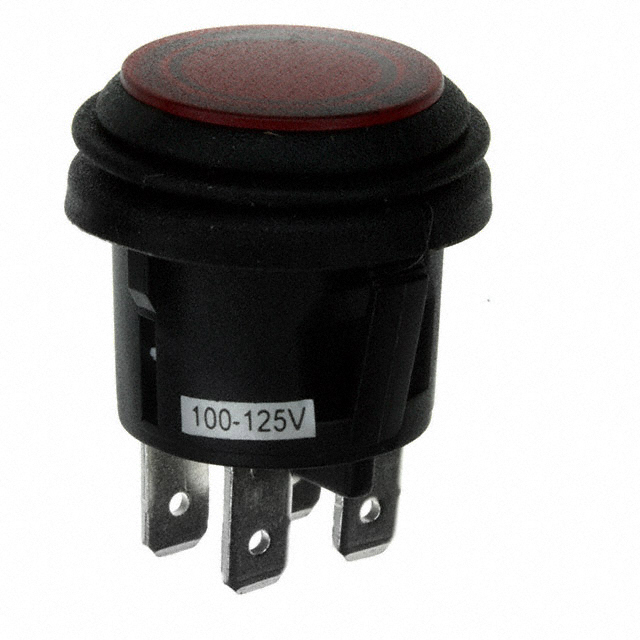

KFB3ALA2RBB

Active

ZF Electronics

SWITCH PUSH DPST 10A 125V

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH PUSH DPST 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	KFB3ALA2RBB

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	DPST
Color - Actuator/Cap	Red
Current Rating (Amps)	10 A
Electrical Life	6000 Cycles
Illumination Type, Color	Red, Neon
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	20.2 mm
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	28 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Illumination Type, Color	Mechanical Life	Voltage Rating - DC	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Circuit	Mounting Type	Actuator Type	Type	Termination Style	Switch Function	Actuator Marking	Ingress Protection	Voltage Rating - AC
ZF Electronics KFB3ALA2RBB	-25 °C	85 °C	6000 Cycles	Neon Red	100000 Cycles	28 V	Red	20.2 mm	10 A	DPST	Panel Mount Snap-In	Button Round	Illuminated Standard	Quick Connect - 0.187" (4.7mm)	On-Off	No Marking	IP65 - Dust Tight Water Resistant	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPST Standard, Illuminated Panel Mount, Snap-In
