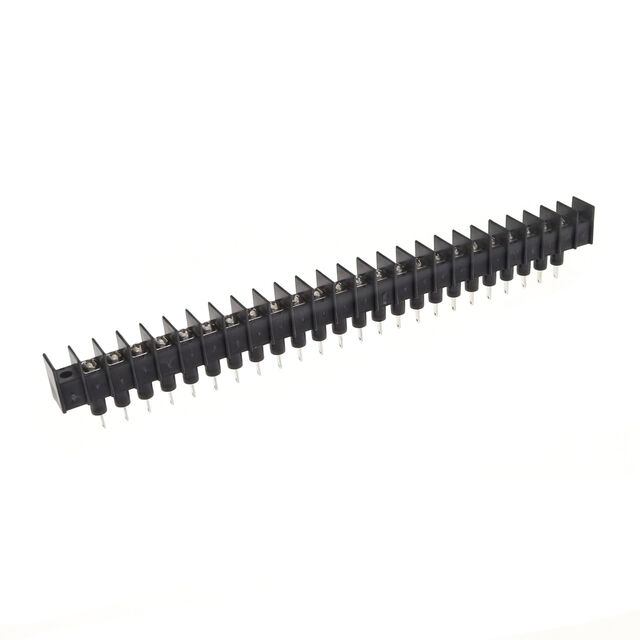

T38232-24-0

Active

Curtis Industries

CONN BARRIER STRP 24CIRC 0.375"

Deep-Dive with AI

Search across all available documentation for this part.

T38232-24-0

Active

Curtis Industries

CONN BARRIER STRP 24CIRC 0.375"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T38232-24-0

Barrier Type	2 Wall (Dual)
Bottom Termination	Insulated, Quick Connect (0.110")
Current Rating (Amps)	20 A
Features	Flange
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	24
Number of Rows	1
Operating Temperature	105 C
Pitch [x]	9.53 mm
Pitch [x]	0.375 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Nickel
Terminal Screw Material	Brass
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	12 AWG

T38232 Series

Part	Terminal Block Type	Bottom Termination	Voltage Rating	Features	Current Rating (Amps)	Number of Wire Entries	Pitch [x]	Pitch [x]	Mounting Type	Operating Temperature	Terminal Screw Material	Top Termination	Wire Gauge [Min]	Wire Gauge [Max]	Number of Rows	Material - Insulation	Material Flammability Rating	Terminal Screw Finish	Barrier Type	Number of Circuits	Number of Circuits [custom]
Curtis Industries T38232-19-0	Barrier Block	Insulated Quick Connect (0.110")	300 VDC	Flange	20 A	19	9.53 mm	0.375 in	Chassis Panel	105 C	Brass	Screws	12 AWG	22 AWG	1	Polypropylene (PP)	UL94 V-0	Nickel	2 Wall (Dual)	19
Curtis Industries T38232-15-0	Barrier Block	Insulated Quick Connect (0.110")	300 VDC	Flange	20 A	15	9.53 mm	0.375 in	Chassis Panel	105 C	Brass	Screws	12 AWG	22 AWG	1	Polypropylene (PP)	UL94 V-0	Nickel	2 Wall (Dual)	15
Curtis Industries T38232-16-0	Barrier Block	Insulated Quick Connect (0.110")	300 VDC	Flange	20 A	16	9.53 mm	0.375 in	Chassis Panel	105 C	Brass	Screws	12 AWG	22 AWG	1	Polypropylene (PP)	UL94 V-0	Nickel	2 Wall (Dual)	16
Curtis Industries T38232-08-0	Barrier Block	Insulated Quick Connect (0.110")	300 VDC	Flange	20 A	8	9.53 mm	0.375 in	Chassis Panel	105 C	Brass	Screws	12 AWG	22 AWG	1	Polypropylene (PP)	UL94 V-0	Nickel	2 Wall (Dual)		8
Curtis Industries T38232-05-0	Barrier Block	Insulated Quick Connect (0.110")	300 VDC	Flange	20 A	5	9.53 mm	0.375 in	Chassis Panel	105 C	Brass	Screws	12 AWG	22 AWG	1	Polypropylene (PP)	UL94 V-0	Nickel	2 Wall (Dual)	5
Curtis Industries T38232-26-0	Barrier Block	Insulated Quick Connect (0.110")	300 VDC	Flange	20 A	26	9.53 mm	0.375 in	Chassis Panel	105 C	Brass	Screws	12 AWG	22 AWG	1	Polypropylene (PP)	UL94 V-0	Nickel	2 Wall (Dual)	26
Curtis Industries T38232-14-0	Barrier Block	Insulated Quick Connect (0.110")	300 VDC	Flange	20 A	14	9.53 mm	0.375 in	Chassis Panel	105 C	Brass	Screws	12 AWG	22 AWG	1	Polypropylene (PP)	UL94 V-0	Nickel	2 Wall (Dual)	14
Curtis Industries T38232-24-0	Barrier Block	Insulated Quick Connect (0.110")	300 VDC	Flange	20 A		9.53 mm	0.375 in	Chassis Panel	105 C	Brass	Screws	12 AWG	22 AWG	1	Polypropylene (PP)	UL94 V-0	Nickel	2 Wall (Dual)	24
Curtis Industries T38232-06-0	Barrier Block	Insulated Quick Connect (0.110")	300 VDC	Flange	20 A	6	9.53 mm	0.375 in	Chassis Panel	105 C	Brass	Screws	12 AWG	22 AWG	1	Polypropylene (PP)	UL94 V-0	Nickel	2 Wall (Dual)	6
Curtis Industries T38232-12-0	Barrier Block	Insulated Quick Connect (0.110")	300 VDC	Flange	20 A	12	9.53 mm	0.375 in	Chassis Panel	105 C	Brass	Screws	12 AWG	22 AWG	1	Polypropylene (PP)	UL94 V-0	Nickel	2 Wall (Dual)	12

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.70
		10	$ 15.58
		25	$ 14.96
		50	$ 14.62
		100	$ 14.37
		250	$ 14.13
		500	$ 14.00

Description

General part information

T38232 Series

24 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
