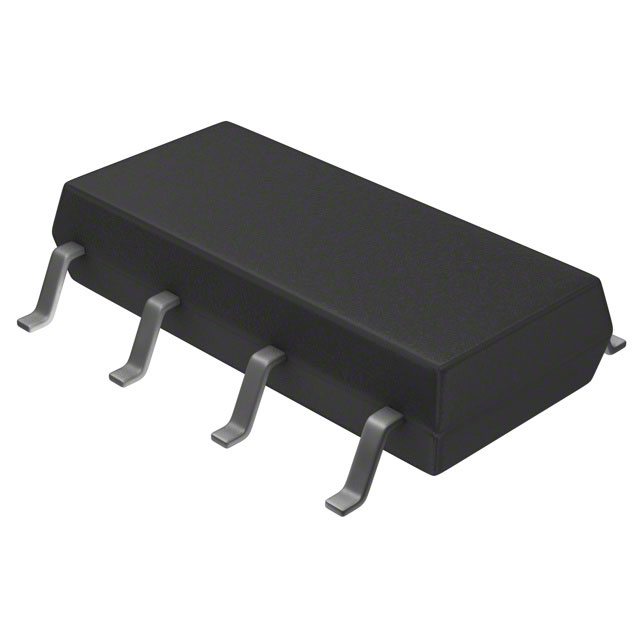

ASSR-1530-005E
ActiveBroadcom Limited
MOSFET RELAY, 60 V, 1 A, 0.5 OHM, DPST-NO ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
ASSR-1530-005E
ActiveBroadcom Limited
MOSFET RELAY, 60 V, 1 A, 0.5 OHM, DPST-NO ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASSR-1530-005E |
|---|---|
| Approval Agency | CSA, UL |
| Circuit | SPST-NO (1 Form A) x 2 |
| Load Current | 1 A |
| Mounting Type | Surface Mount |
| On-State Resistance (Max) [Max] | 500 mOhm |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | DC, AC |
| Package / Case | 8-SOP |
| Package / Case [custom] | 4.4 mm |
| Package / Case [x] | 0.173 in |
| Supplier Device Package | 8-SO |
| Termination Style | Gull Wing |
| Voltage - Input | 1.3 VDC |
| Voltage - Load [Max] | 60 V |
| Voltage - Load [Min] | 0 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ASSR-1530 Series
Solid State SPST-NO (1 Form A) x 2 8-SOP (0.173", 4.40mm Width)
Documents
Technical documentation and resources
No documents available
