AM2G-0512SZ

Active

aimtec

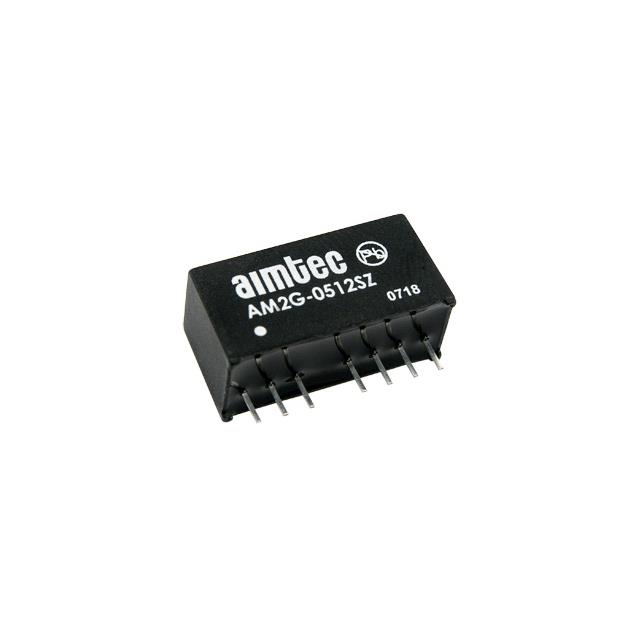

DC DC CONVERTER 12V 2W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM2G-0512SZ

Active

aimtec

DC DC CONVERTER 12V 2W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM2G-0512SZ

Applications	ITE (Commercial)
Approval Agency	CE, cURus, UL
Current - Output (Max) [Max]	167 mA
Efficiency	72 %
Features	Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-SIP Module
Power (Watts)	2 W
Size / Dimension [x]	21.9 mm
Size / Dimension [x]	0.86 in
Size / Dimension [y]	0.36 "
Size / Dimension [y]	9.2 mm
Size / Dimension [z]	0.44 "
Size / Dimension [z]	11.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	9 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1000 V
Voltage - Output 1	12 V

AM2G Series

Part	Voltage - Output 2	Package / Case	Package / Case	Voltage - Isolation	Efficiency	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Approval Agency	Type	Voltage - Output 1	Applications	Current - Output (Max) [Min]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Standard Number	Current - Output (Max)	Current - Output (Max)	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Features
aimtec AM2G-0509DZ	-9 V	8-SIP Module	7 Leads	1000 V	74 %	9 V	85 °C	-40 °C	2	2 W	0.44 "	0.36 "	21.9 mm	9.2 mm	11.2 mm	0.86 in	CE cURus	Isolated Module	9 V	ITE (Commercial)	111 mA	111 mA	4.5 V	Through Hole
aimtec AM2G-0505SZ		8-SIP Module	7 Leads	1000 V	70 %	9 V	85 °C	-40 °C	1	2 W	0.44 "	0.36 "	21.9 mm	9.2 mm	11.2 mm	0.86 in	CE CE cURus cURus EN IEC UL	Isolated Module	5 V	ITE (Commercial)		400 mA	4.5 V	Through Hole	62368-1
aimtec AM2G-0515DZ	-15 V	8-SIP Module		1000 V	75 %	9 V	85 °C	-40 °C	2	2 W	0.44 "	0.36 "	21.9 mm	9.2 mm	11.2 mm	0.86 in	CE cURus UL	Isolated Module		ITE (Commercial)			4.5 V	Through Hole		67 mA	67 mA	15 V	-15 V	Remote On/Off
aimtec AM2G-0512SZ		8-SIP Module		1000 V	72 %	9 V	85 °C	-40 °C	1	2 W	0.44 "	0.36 "	21.9 mm	9.2 mm	11.2 mm	0.86 in	CE cURus UL	Isolated Module	12 V	ITE (Commercial)		167 mA	4.5 V	Through Hole						Remote On/Off
aimtec AM2G-4805SH30Z		8-SIP Module	7 Leads	3000 V	74 %	72 V	85 °C	-40 °C	1	2 W	0.44 "	0.36 "	21.9 mm	9.2 mm	11.2 mm	0.86 in	CE cURus EN IEC UL	Isolated Module	5 V	ITE (Commercial)		400 mA	36 V	Through Hole	62368-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 9.18
		5	$ 9.09
		10	$ 9.00
		15	$ 8.91
		25	$ 8.82
		50	$ 8.73
		100	$ 8.65
		230	$ 8.56
		440	$ 8.47

Description

General part information

AM2G Series

Isolated Module DC DC Converter 1 Output 12V 167mA 4.5V - 9V Input
