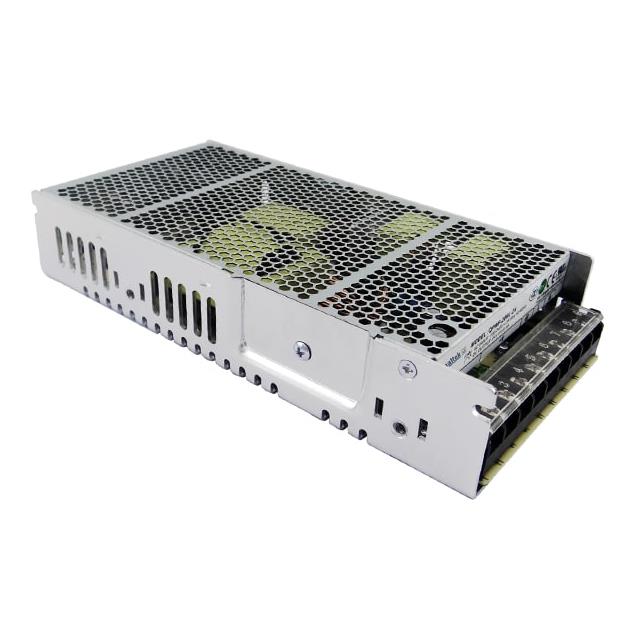

QPWF-200L-24

Active

Qualtek

AC/DC CONVERTER 24V 200W

Search across all available documentation for this part.

Active

Qualtek

AC/DC CONVERTER 24V 200W

Technical Specifications

Parameters and characteristics for this part

Specification	QPWF-200L-24

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output 1	8.4 A
Efficiency	88 %
Features	Universal Input, Adjustable Output, DC Input Capable
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	200 W
Size / Dimension [x]	7.83 in
Size / Dimension [x]	199 mm
Size / Dimension [y]	3.9 in
Size / Dimension [y]	99 mm
Size / Dimension [z]	38 mm
Size / Dimension [z]	1.5 "
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Type	Power (Watts)	Current - Output 1	Voltage - Isolation	Voltage - Output 1	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Type	Efficiency
Qualtek QPWF-200L-48	1	90 VAC	264 VAC	Enclosed	200 W	4.2 A	3000 V	48 V	Adjustable Output DC Input Capable Universal Input	7.83 in	3.9 in	199 mm	38 mm	99 mm	1.5 "	CB CE cURus	-20 °C	70 °C	ITE (Commercial)	Chassis Mount	88.5 %
Qualtek QPWF-200L-24	1	90 VAC	264 VAC	Enclosed	200 W	8.4 A	3000 V	24 V	Adjustable Output DC Input Capable Universal Input	7.83 in	3.9 in	199 mm	38 mm	99 mm	1.5 "	CB CE cURus	-20 °C	70 °C	ITE (Commercial)	Chassis Mount	88 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 61.11

General part information

Enclosed AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
