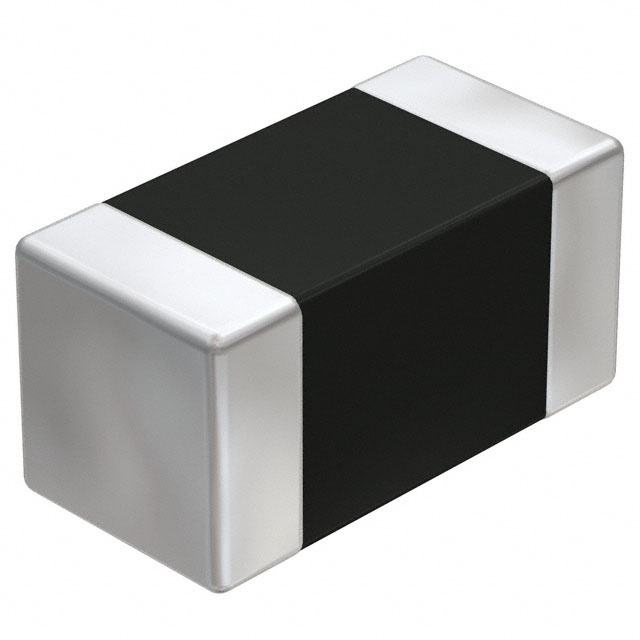

EMK105SD152KV-F
ActiveTAIYO YUDEN
SMD MULTILAYER CERAMIC CAPACITOR, 1500 PF, 16 V, 0402 [1005 METRIC], ± 10%
Deep-Dive with AI
Search across all available documentation for this part.
EMK105SD152KV-F
ActiveTAIYO YUDEN
SMD MULTILAYER CERAMIC CAPACITOR, 1500 PF, 16 V, 0402 [1005 METRIC], ± 10%
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EMK105SD152KV-F |
|---|---|
| Applications | General Purpose |
| Capacitance | 1500 pF |
| Features | Low Distortion |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension [x] | 1 mm |
| Size / Dimension [x] | 0.039 in |
| Size / Dimension [y] | 0.02 in |
| Size / Dimension [y] | 0.5 mm |
| Thickness (Max) [Max] | 0.022 in |
| Thickness (Max) [Max] | 0.55 mm |
| Tolerance | 10 % |
| Voltage - Rated [custom] | 16 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.22 | |
| 10 | $ 0.13 | |||
| 50 | $ 0.09 | |||
| 100 | $ 0.08 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.06 | |||
| 2500 | $ 0.05 | |||
| 5000 | $ 0.05 | |||
| Digi-Reel® | 1 | $ 0.22 | ||
| 10 | $ 0.13 | |||
| 50 | $ 0.09 | |||
| 100 | $ 0.08 | |||
| 500 | $ 0.06 | |||
| 1000 | $ 0.06 | |||
| 2500 | $ 0.05 | |||
| 5000 | $ 0.05 | |||
| Tape & Reel (TR) | 10000 | $ 0.05 | ||
| Newark | Each (Supplied on Full Reel) | 10000 | $ 0.07 | |
| 20000 | $ 0.06 | |||
| 30000 | $ 0.06 | |||
| 50000 | $ 0.05 | |||
Description
General part information
EMK105S Series
1500 pF ±10% 16V Ceramic Capacitor 0402 (1005 Metric)
