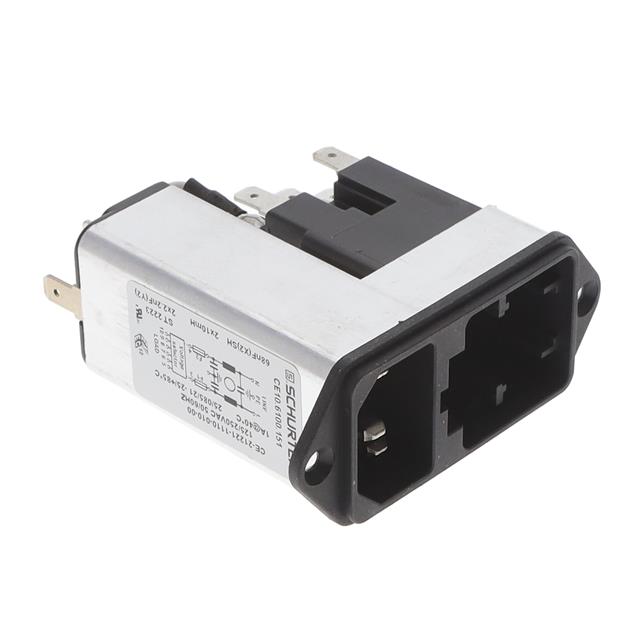

CE10.6100.151

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	CE10.6100.151

Accomodates a Fuse	True
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	1 A
Current Rating - Filter	1 A
Features	Voltage Selector
Filter Type	Filtered (EMI, RFI) - Commercial
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.5 mm
Panel Cutout Dimensions [y]	53.5 mm
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Termination	Termination	Current Rating - Filter	Filter Type	Material Flammability Rating	Connector Type	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet	Mounting Type	Approval Agency	Connector Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Fuse Holder, Drawer	Features	Accomodates a Fuse
SCHURTER Inc. CE10.6100.151	0.189 " 4.8 mm	Quick Connect	1 A	Filtered (EMI RFI) - Commercial	UL94 V-0	Receptacle Male Blades - Module	250 VAC	1 A	Flange Panel Mount	cULus ENEC	IEC 320-C14	28.5 mm	53.5 mm	IP40	Drawer Sold Separate	Voltage Selector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
