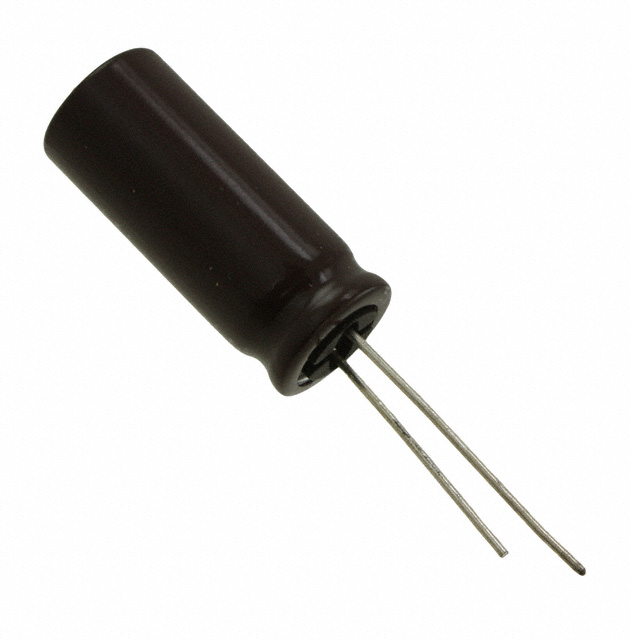

UPJ1C182MHD

NICHICON

ELECTROLYTIC CAPACITOR, LOW IMPEDANCE, 1800 ΜF, 16 V, ± 20%, PC PIN, 1000 HOURS @ 85°C, POLAR

Search across all available documentation for this part.

NICHICON

ELECTROLYTIC CAPACITOR, LOW IMPEDANCE, 1800 ΜF, 16 V, ± 20%, PC PIN, 1000 HOURS @ 85°C, POLAR

Technical Specifications

Parameters and characteristics for this part

Specification	UPJ1C182MHD

Applications	General Purpose
Capacitance	1800 µF
Height - Seated (Max) [Max] [z]	1.299 in
Height - Seated (Max) [Max] [z]	33 mm
Impedance	39 mOhms
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	5000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	1.88 A
Ripple Current @ Low Frequency	1.69 A
Size / Dimension [diameter]	0.492 in
Size / Dimension [diameter]	12.5 mm
Tolerance	20 %
Voltage - Rated	16 V

Part	Lead Spacing	Lead Spacing	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Ripple Current @ Low Frequency	Impedance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Package / Case	Applications	Ripple Current @ High Frequency	Mounting Type	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Min]	Polarization	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
NICHICON UPJ1C222MHD6	7.5 mm	0.295 in	0.63 in	16 mm	16 V	1.62 A	48 mOhms	21.5 mm	0.846 in	20 %	Radial Can	General Purpose	1.8 A	Through Hole	5000 Hrs	105 ░C	-55 °C	Polar	2200 µF
NICHICON UPJ1C182MHD	5 mm	0.197 in	0.492 in	12.5 mm	16 V	1.69 A	39 mOhms			20 %	Radial Can	General Purpose	1.88 A	Through Hole	5000 Hrs	105 ░C	-55 °C	Polar	1800 µF	1.299 in	33 mm
NICHICON UPJ1E102MHD	5 mm	0.197 in	0.492 in	12.5 mm	25 VDC	1.43 A	48 mOhms			20 %	Radial Can	General Purpose	1.66 A	Through Hole	5000 Hrs	105 ░C	-55 °C	Polar	1000 µF	1.043 in	26.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1800 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
