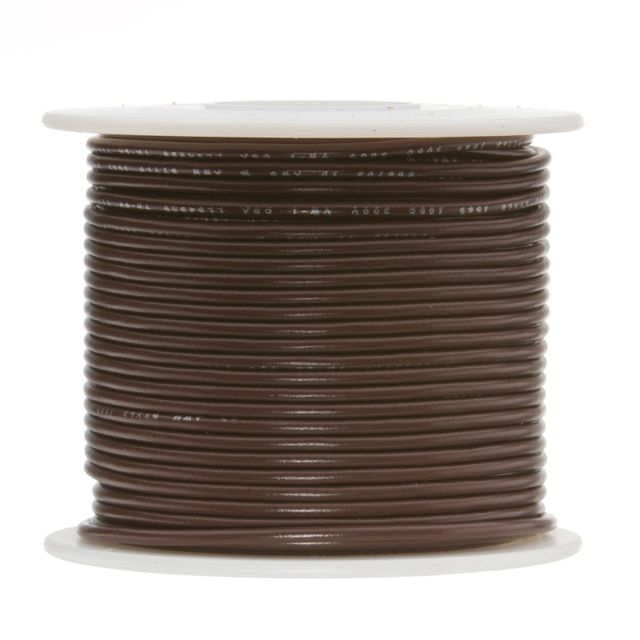

16UL1015STRBRO
ActiveRemington Industries
HOOK-UP STRND 16AWG BROWN 100'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
16UL1015STRBRO
ActiveRemington Industries
HOOK-UP STRND 16AWG BROWN 100'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 16UL1015STRBRO |
|---|---|
| Cable Type | Hook-Up |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 30 AWG |
| Conductor Strand [custom] | 26 |
| Features | Chemical Resistant, Oil Resistant, Abrasion Resistant, Solvent Resistant |
| Jacket (Insulation) Diameter [diameter] | 3.15 mm |
| Jacket (Insulation) Diameter [diameter] | 0.124 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket (Insulation) Thickness | 0.76 mm |
| Jacket (Insulation) Thickness | 0.762 mm |
| Jacket Color | Brown |
| Length [x] | 30.5 m |
| Length [x] | 100 ft |
| Operating Temperature | 105 C |
| Voltage | 600 V |
| Wire Gauge | 16 AWG |
16UL1015 Series
| Part | Wire Gauge | Conductor Material | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Cable Type | Operating Temperature | Conductor Strand [custom] | Conductor Strand [custom] | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Jacket Color | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Remington Industries | 16 AWG | Copper Tinned | 30.5 m | 100 ft | 3.15 mm | 0.124 in | 600 V | Hook-Up | 105 C | 30 AWG | 26 | Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant | 0.76 mm | 0.762 mm | Poly-Vinyl Chloride (PVC) | Brown | ||
Remington Industries | 16 AWG | Copper Tinned | 30.5 m | 100 ft | 3.15 mm | 0.124 in | 600 V | Hook-Up | 105 C | 30 AWG | 26 | Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant | 0.76 mm | 0.762 mm | Poly-Vinyl Chloride (PVC) | |||
Remington Industries | 16 AWG | Copper Tinned | 3.15 mm | 0.124 in | 600 V | Hook-Up | 105 C | 30 AWG | 26 | Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant | 0.76 mm | 0.762 mm | Poly-Vinyl Chloride (PVC) | Green | 3000 " | 76.2 m | ||
Remington Industries | 16 AWG | Copper Tinned | 30.5 m | 100 ft | 3.15 mm | 0.124 in | 600 V | Hook-Up | 105 C | 30 AWG | 26 | Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant | 0.76 mm | 0.762 mm | Poly-Vinyl Chloride (PVC) | Violet | ||
Remington Industries | 16 AWG | Copper Tinned | 152.4 m | 500 ' | 3.15 mm | 0.124 in | 600 V | Hook-Up | 105 C | 30 AWG | 26 | Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant | 0.76 mm | 0.762 mm | Poly-Vinyl Chloride (PVC) | Red | ||
Remington Industries | 16 AWG | Copper Tinned | 3.15 mm | 0.124 in | 600 V | Hook-Up | 105 C | 30 AWG | 26 | Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant | 0.76 mm | 0.762 mm | Poly-Vinyl Chloride (PVC) | Blue | 3000 " | 76.2 m | ||
Remington Industries | 16 AWG | Copper Tinned | 30.5 m | 100 ft | 3.15 mm | 0.124 in | 600 V | Hook-Up | 105 C | 30 AWG | 26 | Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant | 0.76 mm | 0.762 mm | Poly-Vinyl Chloride (PVC) | Red | ||
Remington Industries | 16 AWG | Copper Tinned | 7.62 m | 25 ft | 3.15 mm | 0.124 in | 600 V | Hook-Up | 105 C | 30 AWG | 26 | Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant | 0.76 mm | 0.762 mm | Poly-Vinyl Chloride (PVC) | |||
Remington Industries | 16 AWG | Copper Tinned | 3.15 mm | 0.124 in | 600 V | Hook-Up | 105 C | 30 AWG | 26 | Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant | 0.76 mm | 0.762 mm | Poly-Vinyl Chloride (PVC) | Blue | 1000 ft | 304.8 m | ||
Remington Industries | 16 AWG | Copper Tinned | 3.15 mm | 0.124 in | 600 V | Hook-Up | 105 C | 30 AWG | 26 | Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant | 0.76 mm | 0.762 mm | Poly-Vinyl Chloride (PVC) | Brown | 1000 ft | 304.8 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 30.42 | |
Description
General part information
16UL1015 Series
16 AWG Hook-Up Wire 26/30 Brown 600V 100.0' (30.5m)
