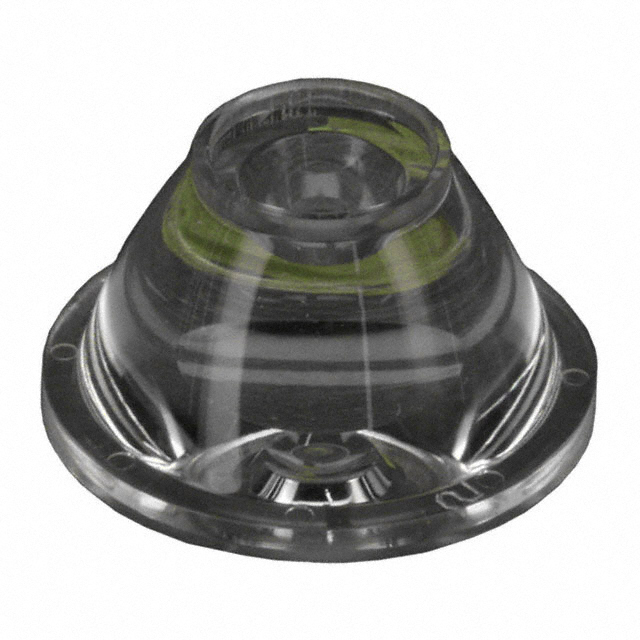

ASMT-M015

Active

Broadcom Limited

OPTOELECTRONICS ACCESSORIES ROHS

Search across all available documentation for this part.

Active

Broadcom Limited

OPTOELECTRONICS ACCESSORIES ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	ASMT-M015

Color	Clear
For Use With/Related Manufacturer	Avago
Lens Size [diameter]	20 mm
Lens Transparency	Clear
Material	Acrylic
Mounting Type	Press Fit
Number of LEDs	1
Type	Holder Required, Lens Only
Viewing Angle	15 °

Part	Mounting Type	Lens Transparency	Lens Size [diameter]	Material	Number of LEDs	Viewing Angle	For Use With/Related Manufacturer	Type	Color
Broadcom Limited ASMT-M015	Press Fit	Clear	20 mm	Acrylic	1	15 °	Avago	Holder Required Lens Only	Clear

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Lens Only, Holder Required Clear 15° Press Fit
