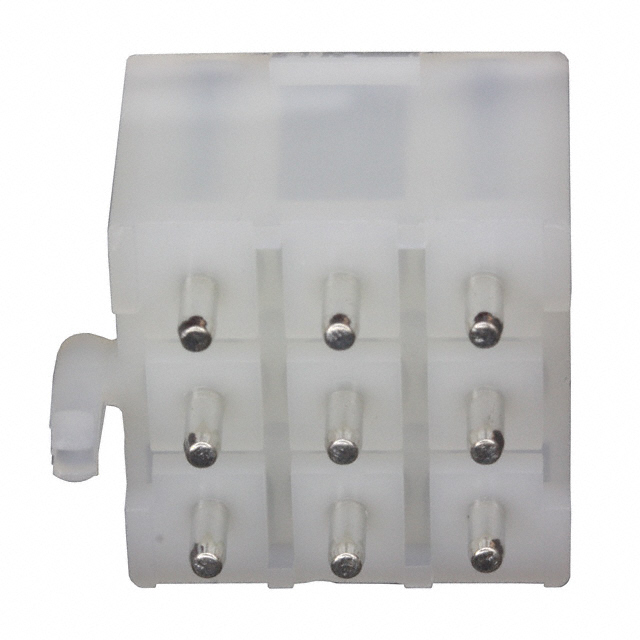

0015311096

Active

Molex

CONN HEADER VERT 9POS 6.71MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0015311096

Active

Molex

CONN HEADER VERT 9POS 6.71MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0015311096

Applications	Telecommunications, General Purpose
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	120 µin
Contact Finish Thickness - Mating	3.05 Ám
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.591 in
Insulation Height	15 mm
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	9
Number of Positions Loaded	All
Number of Rows	3
Pitch - Mating	6.71 mm
Pitch - Mating	0.264 in
Row Spacing - Mating	6.71 mm
Row Spacing - Mating	0.264 "
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

001531 Series

Part	Row Spacing	Row Spacing	Contact Termination	Note	Mounting Type	Number of Positions	Pitch [x]	Pitch [x]	Connector Type	Contact Type	Fastening Type	Number of Rows	Contact Material	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Insulation Material	Insulation Height	Insulation Height	Shrouding	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Applications	Style	Row Spacing - Mating	Row Spacing - Mating	Termination	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Shape	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]
Molex 0015311152	0.189 in	4.8 mm	Crimp	Contacts Not Included	Free Hanging (In-Line)	15	0.189 in	4.8 mm	Receptacle	Female Socket	Latch Lock	3
Molex 0015311153	0.189 in	4.8 mm	Crimp	Contacts Not Included		15	0.189 in	4.8 mm	Plug	Male Pin	Locking Ramp	3
Molex 0015312096					Through Hole	9			Header	Male Pin	Locking Ramp	3	Brass	3.5 mm	0.138 in	UL94 V-2	Polyamide (PA66) Nylon 6/6	0.591 in	15 mm	Shrouded - 4 Wall	All	120 µin	3.05 Ám	General Purpose Telecommunications	Board to Cable/Wire	6.71 mm	0.264 "	Solder	6.71 mm	0.264 in	Tin	Circular	Natural
Molex 0015311091	0.189 in	4.8 mm	Crimp	Contacts Not Included	Panel Mount Snap-In	9	0.189 in	4.8 mm	Plug	Male Pin	Locking Ramp	3					Polyamide (PA66) Nylon 6/6																	-40 °C	105 ░C
Molex 0015311041			Crimp	Contacts Not Included	Panel Mount Snap-In	4	0.189 in	4.8 mm	Plug	Male Pin	Locking Ramp	1					Polyamide (PA66) Nylon 6/6																	-40 °C	105 ░C
Molex 0015311023			Crimp	Contacts Not Included		2	0.189 in	4.8 mm	Plug	Male Pin	Locking Ramp	1					Polyamide (PA66) Nylon 6/6																	-40 °C	105 ░C
Molex 0015311096					Through Hole	9			Header	Male Pin	Locking Ramp	3	Brass	3.5 mm	0.138 in	UL94 V-2	Polyamide (PA66) Nylon 6/6	0.591 in	15 mm	Shrouded - 4 Wall	All	120 µin	3.05 Ám	General Purpose Telecommunications	Board to Cable/Wire	6.71 mm	0.264 "	Solder	6.71 mm	0.264 in	Tin	Circular	Natural
Molex 0015311122	0.189 in	4.8 mm	Crimp	Contacts Not Included	Free Hanging (In-Line)	12	0.189 in	4.8 mm	Receptacle	Female Socket	Latch Lock	3					Polyamide (PA66) Nylon 6/6																	-40 °C	105 ░C
Molex 0015311062	0.189 in	4.8 mm	Crimp	Contacts Not Included	Free Hanging (In-Line)	6	0.189 in	4.8 mm	Receptacle	Female Socket	Latch Lock	2					Polyamide (PA66) Nylon 6/6																	-40 °C	105 ░C
Molex 0015311151	0.189 in	4.8 mm	Crimp	Contacts Not Included	Panel Mount Snap-In	15	0.189 in	4.8 mm	Plug	Male Pin	Locking Ramp	3
