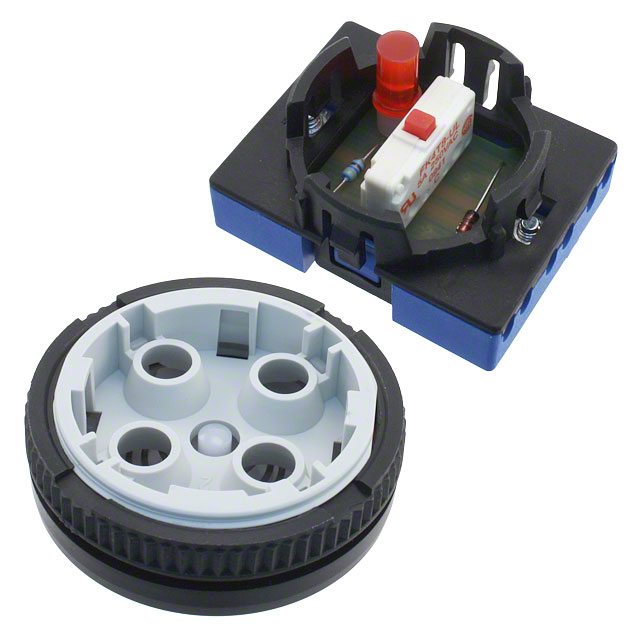

LPI5112R1K21705

Active

APEM

SWITCH PUSHBUTTON DPST 5A 12V

Search across all available documentation for this part.

Active

APEM

SWITCH PUSHBUTTON DPST 5A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	LPI5112R1K21705

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	DPST-NO/NC
Color - Actuator/Cap	White
Current Rating (Amps)	5 A
Electrical Life	50000 Cycles
Features	Tactile Feedback
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	12 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Panel Mount, Front
Panel Cutout Dimensions [diameter]	38.1 mm
Switch Function	Off-Mom, On-Mom
Termination Style	Screw Terminal
Type	Illuminated, Standard
Voltage Rating - DC	12 V

Part	Current Rating (Amps)	Illumination Voltage (Nominal)	Actuator Marking	Switch Function	Type	Features	Electrical Life	Actuator Type	Termination Style	Panel Cutout Dimensions [diameter]	Mechanical Life	Mounting Type	Voltage Rating - DC	Circuit	Color - Actuator/Cap	Illumination Type, Color
APEM LPI5112R1K21705	5 A	12 VDC	No Marking	Off-Mom On-Mom	Illuminated Standard	Tactile Feedback	50000 Cycles	Button Flush Round	Screw Terminal	38.1 mm	1000000 Cycles	Panel Mount Front	12 V	DPST-NO/NC	White	LED Red

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	15	$ 71.62

General part information

Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
