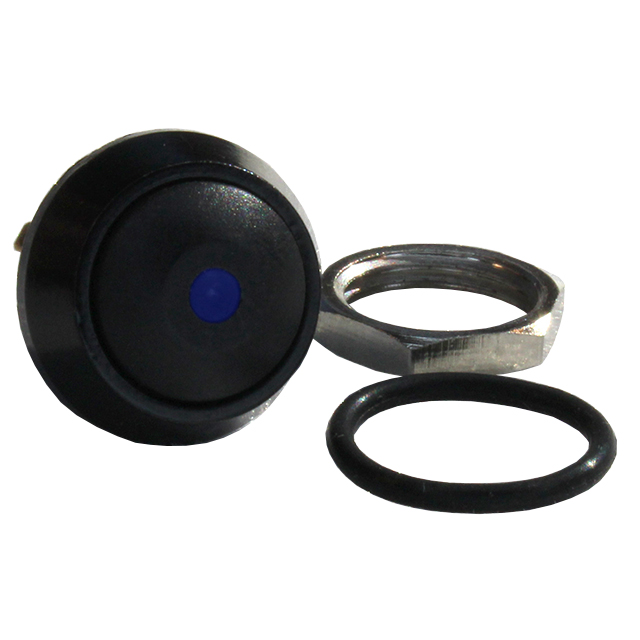

EH12NLB2BB
ActiveCIT Relay and Switch
SWITCH PB SPST-NO 2A 48V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EH12NLB2BB
ActiveCIT Relay and Switch
SWITCH PB SPST-NO 2A 48V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EH12NLB2BB |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Button |
| Circuit | SPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 2 A |
| Electrical Life | 200000 Cycles |
| Illumination Type, Color | LED, Blue |
| Illumination Voltage (Nominal) | 3.3 VDC |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 12 mm |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Type | Anti-Vandal, Illuminated |
| Voltage Rating - DC | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 11.73 | |
| 10 | $ 10.60 | |||
| 25 | $ 10.09 | |||
| 50 | $ 9.58 | |||
| 100 | $ 9.24 | |||
| 250 | $ 8.67 | |||
| 450 | $ 7.93 | |||
| 950 | $ 7.01 | |||
Description
General part information
EH12NLB2 Series
Pushbutton Switch SPST-NO Anti-Vandal, Illuminated Panel Mount, Front
