0190040004

Active

Molex

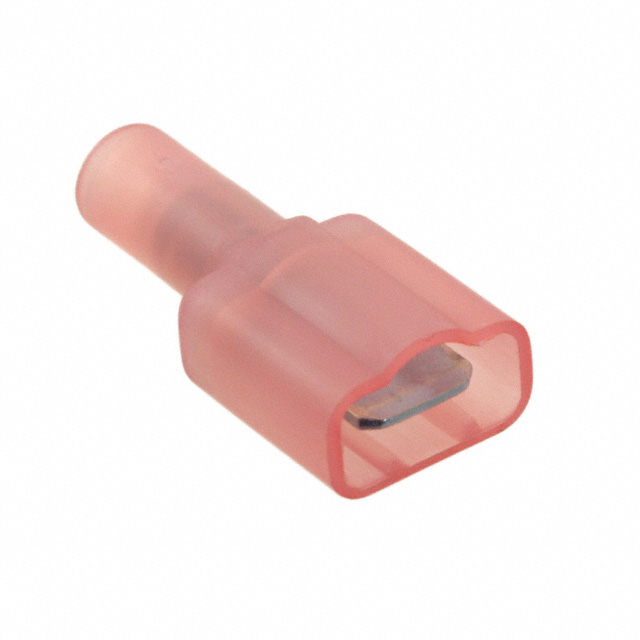

CONN QC TAB 18-22AWG 0.250 CRIMP

Search across all available documentation for this part.

Active

Molex

CONN QC TAB 18-22AWG 0.250 CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	0190040004

Color	Red
Contact Finish	Zinc
Contact Material	Brass
Gender	Male
Insulation	Fully Insulated
Insulation Diameter	3.68 mm
Insulation Diameter [diameter]	0.145 "
Length - Overall [x]	0.97 in
Length - Overall [x]	24.64 mm
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.032 in
Tab Thickness	0.81 mm
Tab Width	6.35 mm
Tab Width	0.25 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	17.5 AWG

Part	Insulation Diameter	Insulation Diameter [diameter]	Gender	Color	Contact Finish	Insulation	Mounting Type	Tab Thickness	Tab Thickness	Terminal Type	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Max]	Wire Gauge [Min]	Contact Material	Tab Width	Tab Width	Termination	Insulation Diameter [diameter]
Molex 0190040004	3.68 mm	0.145 "	Male	Red	Zinc	Fully Insulated	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	0.97 in	24.64 mm	22 AWG	17.5 AWG	Brass	6.35 mm	0.25 in	Crimp
Molex 0190040001	3.68 mm	0.145 "	Male	Red	Zinc	Fully Insulated	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	0.97 in	24.64 mm	22 AWG	17.5 AWG	Brass	6.35 mm	0.25 in	Crimp
Molex 0190040030		0.275 in	Male	Yellow	Zinc	Fully Insulated	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	1.12 "	28.45 mm	12 AWG	10 AWG	Brass	6.35 mm	0.25 in	Crimp	6.99 mm
Molex 0190040027	3.68 mm	0.145 "	Male	Red	Zinc	Fully Insulated	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	0.97 in	24.64 mm	22 AWG	17.5 AWG	Brass	6.35 mm	0.25 in	Crimp
Molex 0190040007			Male	Blue	Zinc	Fully Insulated	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard					Brass	6.35 mm	0.25 in	Crimp
Molex 0190040003	3.68 mm	0.145 "	Male	Red	Zinc	Fully Insulated	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard			22 AWG	17.5 AWG	Brass	6.35 mm	0.25 in	Crimp
Molex 0190040009		0.275 in	Male	Yellow	Zinc	Fully Insulated	Free Hanging (In-Line)	0.032 in	0.81 mm	Standard	1.12 "	28.45 mm	12 AWG	10 AWG	Brass	6.35 mm	0.25 in	Crimp	6.99 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.250" (6.35mm) Quick Connect Male 18-22 AWG Crimp Connector Fully Insulated
