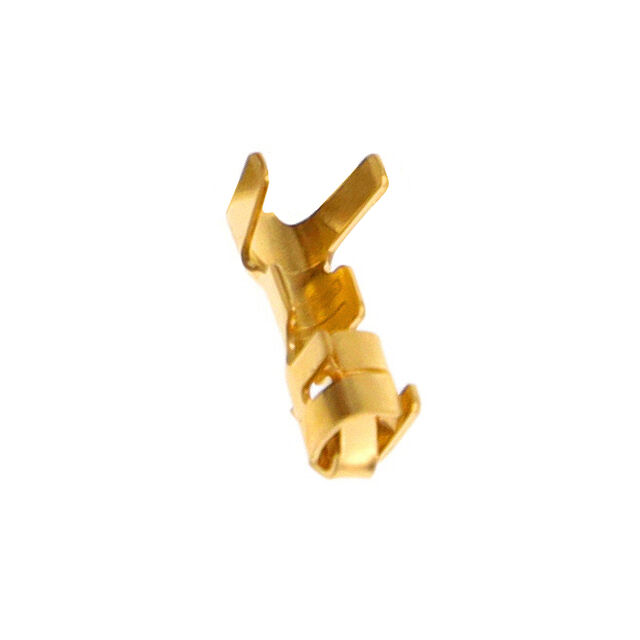

SXH-001GU-P0.6
ActiveJST Sales America Inc.
CONN TERM CRIMP XH 22-28AWG GLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SXH-001GU-P0.6
ActiveJST Sales America Inc.
CONN TERM CRIMP XH 22-28AWG GLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SXH-001GU-P0.6 |
|---|---|
| Contact Finish | Gold |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Type | Stamped |
| Wire Gauge [Max] | 28 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.35 | |
| 10 | $ 0.27 | |||
| 25 | $ 0.24 | |||
| 50 | $ 0.22 | |||
| 100 | $ 0.20 | |||
| 250 | $ 0.18 | |||
| 500 | $ 0.17 | |||
| 1000 | $ 0.16 | |||
| 2500 | $ 0.14 | |||
| Tape & Reel (TR) | 6000 | $ 0.13 | ||
| 12000 | $ 0.12 | |||
| 18000 | $ 0.12 | |||
| 30000 | $ 0.11 | |||
| 42000 | $ 0.11 | |||
| 60000 | $ 0.11 | |||
Description
General part information
SXH-001 Series
Socket Contact Gold 22-28 AWG Crimp Stamped
Documents
Technical documentation and resources
