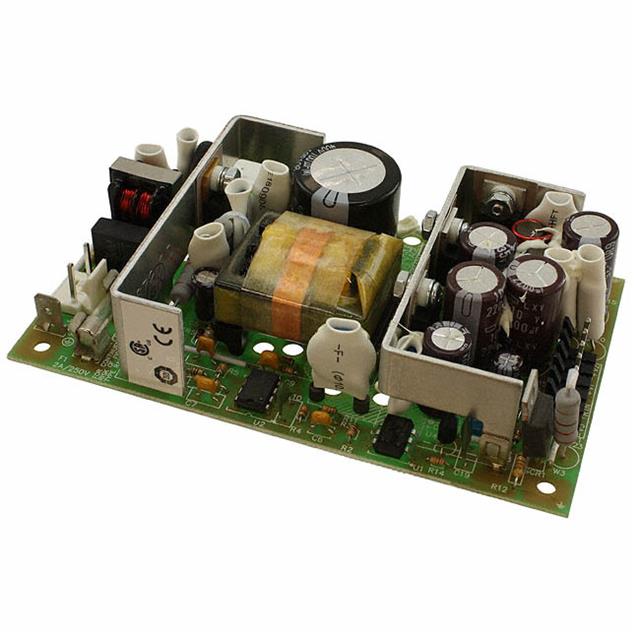

MAP42-1024G

Active

EOS Power India Private Ltd

AC/DC CONVERTER 24V 40W

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

AC/DC CONVERTER 24V 40W

Technical Specifications

Parameters and characteristics for this part

Specification	MAP42-1024G

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output 1	1.7 A
Efficiency	70 %
Features	Remote Sense, Universal Input, Adjustable Output
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	40 W
Size / Dimension [x]	5 in
Size / Dimension [x]	127 mm
Size / Dimension [y]	3 "
Size / Dimension [y]	76.2 mm
Size / Dimension [z]	1.25 "
Size / Dimension [z]	31.8 mm
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	2.6 kV
Voltage - Output 1	24 V

Part	Power (Watts)	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Output 1	Approval Agency	Features	Applications	Minimum Load Required	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Mounting Type	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Efficiency
EOS Power India Private Ltd MAP42-1012G	40 W	2.6 kV	70 °C	0 °C	Open Frame	3.4 A	CE	Adjustable Output Remote Sense Universal Input	ITE (Commercial)		90 VAC	264 VAC	12 V	Chassis Mount	1	3 "	1.25 "	76.2 mm	5 in	31.8 mm	127 mm	70 %
EOS Power India Private Ltd MAP42-1024G	40 W	2.6 kV	70 °C	0 °C	Open Frame	1.7 A	CE	Adjustable Output Remote Sense Universal Input	ITE (Commercial)		90 VAC	264 VAC	24 V	Chassis Mount	1	3 "	1.25 "	76.2 mm	5 in	31.8 mm	127 mm	70 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
